SKU: UCEHE202-SNR

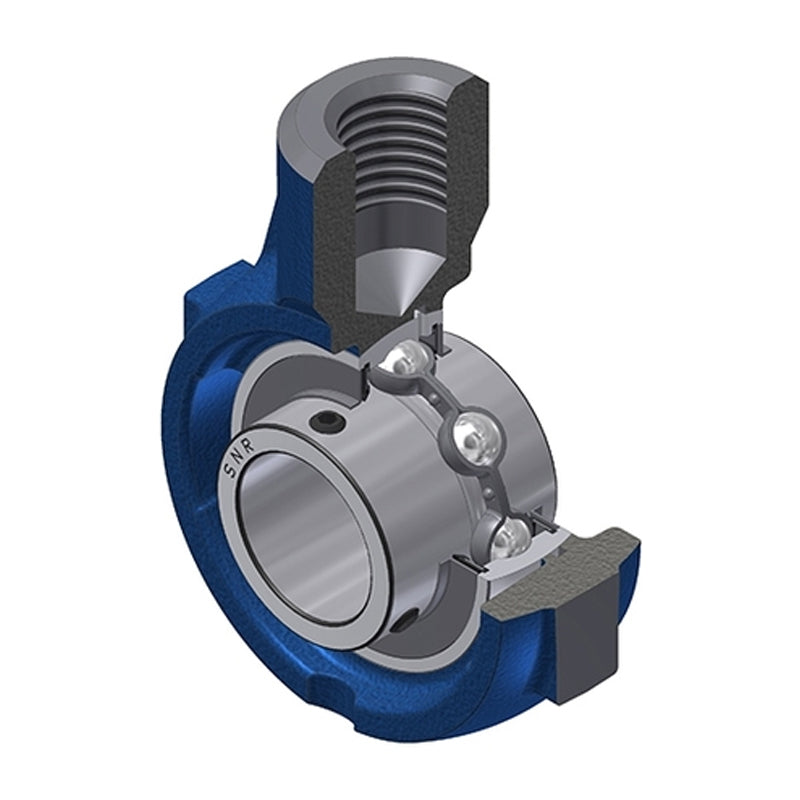

SNR UCEHE202 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert
SNR UCEHE202 Metric Cast Iron Hanger Bearing Unit with 15mm Bore Insert
Regular price
CHF 29.00
ex VAT
Regular price
Sale price
CHF 29.00
ex VAT
In stock
Price Break
3+
CHF 22.88
4+
CHF 21.59
9+
CHF 21.33
19+
CHF 21.08
49+
CHF 20.82
99+
CHF 20.56
499+
CHF 19.28
999+
CHF 19.02
1999+
CHF 18.76
2999+
CHF 18.51
4999+
CHF 17.99
Share this product
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCEHE
Technical
Technical

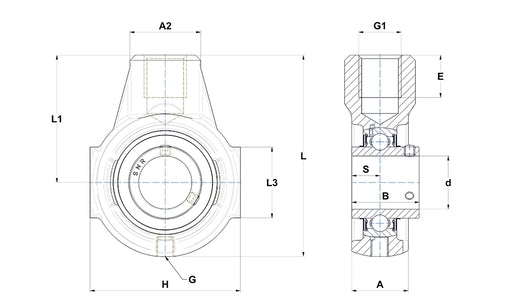

| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 25mm |
| A2 | 30mm |
| B | 31mm |
| E | 21mm |
| H | 65mm |
| L | 91mm |
| L1 | 58mm |
| L3 | 38mm |
| S | 12.7mm |
| G | R1/8″ |
| G1 | M16 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 0.6 kg |
