SKU: UCF.205-14

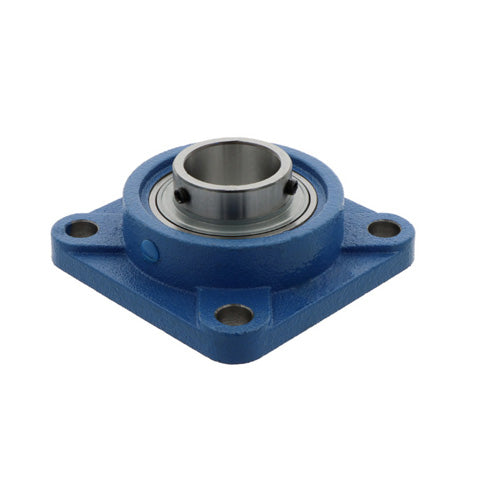

UCF205-14 Imperial Four Bolt Square Cast Iron Flange Housing with 7/8 inch Bore Insert
UCF205-14 Imperial Four Bolt Square Cast Iron Flange Housing with 7/8 inch Bore Insert
Regular price
CHF 8.84
ex VAT
Regular price
Sale price
CHF 8.84
ex VAT
Equivalent to: SF7/8
In stock
Price Break
10+
CHF 7.87
19+
CHF 7.43
29+
CHF 7.34
39+
CHF 7.25
49+
CHF 7.16
74+
CHF 7.07
99+
CHF 6.63
199+
CHF 6.54
249+
CHF 6.45
499+
CHF 6.36
999+
CHF 6.19
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF7/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 95mm |
| e | 70mm |
| i | 16mm |
| g | 14mm |
| L | 27mm |
| S | 12mm |
| Z | 35.7mm |
| Bi | 34mm |
| n | 14.3mm |
| Bolt Size | M10 |
| Weight | 0.82 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
