UCF215-48 Imperial Four Bolt Square Cast Iron Flange Housing with 3 inch Bore Insert
UCF215-48 Imperial Four Bolt Square Cast Iron Flange Housing with 3 inch Bore Insert
Regular price
CHF 68.00
ex VAT
Regular price
Sale price
CHF 68.00
ex VAT
Equivalent to: SF3
In stock
Price Break
3+
CHF 53.52
4+
CHF 50.52
9+
CHF 49.92
19+
CHF 49.31
49+
CHF 48.71
99+
CHF 48.11
499+
CHF 45.11
999+
CHF 44.50
1999+
CHF 43.90
2999+
CHF 43.30
4999+
CHF 42.10
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- UCF
- Bolt Hole Centres:
- 159mm
Technical

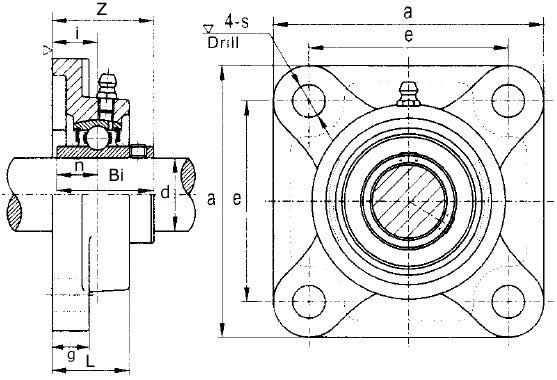

Technical
| d | 3 inch |
|---|---|
| a | 200mm |
| e | 159mm |
| i | 35mm |
| g | 24mm |
| L | 54mm |
| S | 19mm |
| Z | 75.4mm |
| Bi | 74.6mm |
| n | 30.2mm |
| Bolt Size | 16mm |
| Weight | 6.6 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
| Rec max speed | 2300 rpm |
