SKU: UCF204NL3-SNR

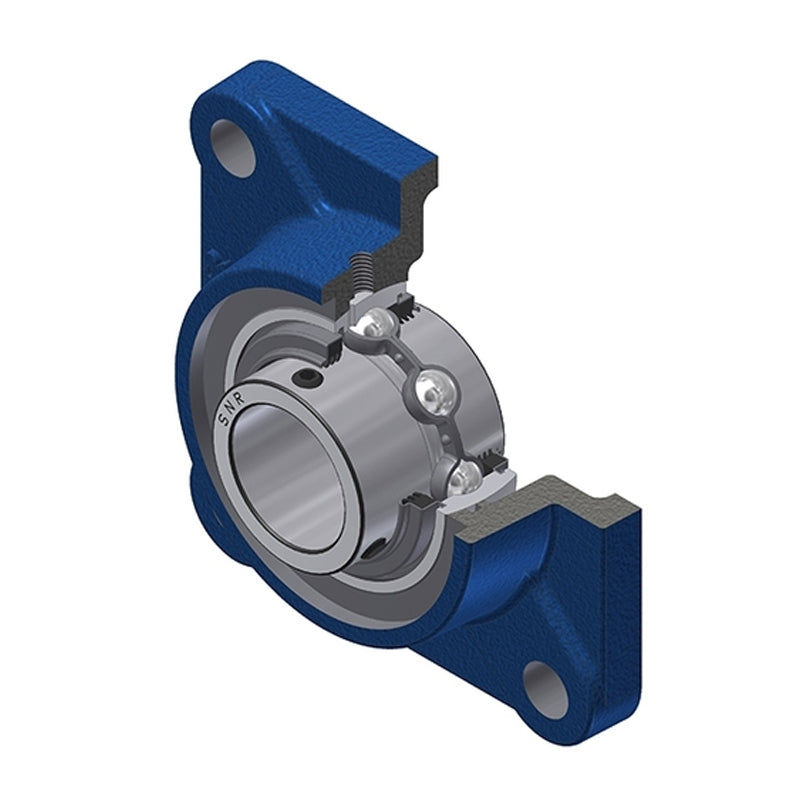

SNR UCF204NL3 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCF204NL3 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
CHF 35.00
ex VAT
Regular price
Sale price
CHF 35.00
ex VAT
In stock
Price Break
3+
CHF 30.71
4+
CHF 29.47
9+
CHF 28.85
19+
CHF 27.92
49+
CHF 27.30
99+
CHF 25.75
499+
CHF 21.71
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 20mm |
| A | 25.5mm |
| A1 | 11mm |
| A2 | 33.3mm |
| B | 31mm |
| e | 15mm |
| J | 64mm |
| L | 86mm |
| N | 12mm |
| S | 12.7mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.59 kg |
