SKU: UCF206CC-SNR

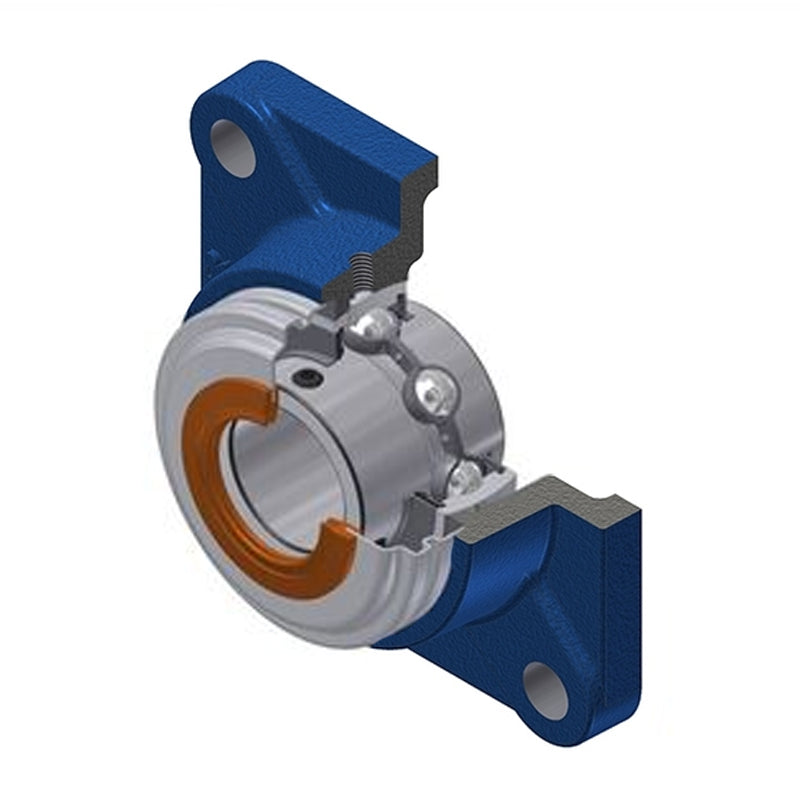

SNR UCF206CC Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCF206CC Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 48.00
ex VAT
Regular price
Sale price
CHF 48.00
ex VAT
In stock
Price Break
3+
CHF 37.75
4+
CHF 35.63
9+
CHF 35.20
19+
CHF 34.78
49+
CHF 34.35
99+
CHF 33.93
499+
CHF 31.81
999+
CHF 31.38
1999+
CHF 30.96
2999+
CHF 30.54
4999+
CHF 29.69
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 30mm |
| A | 31mm |
| A1 | 13mm |
| A2 | 40.2mm |
| B | 38.1mm |
| e | 18mm |
| J | 83mm |
| L | 108mm |
| N | 12mm |
| S | 15.9mm |
| Dz | 70mm |
| Z | 44.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 1.11 kg |
