SKU: UCF208N-SNR

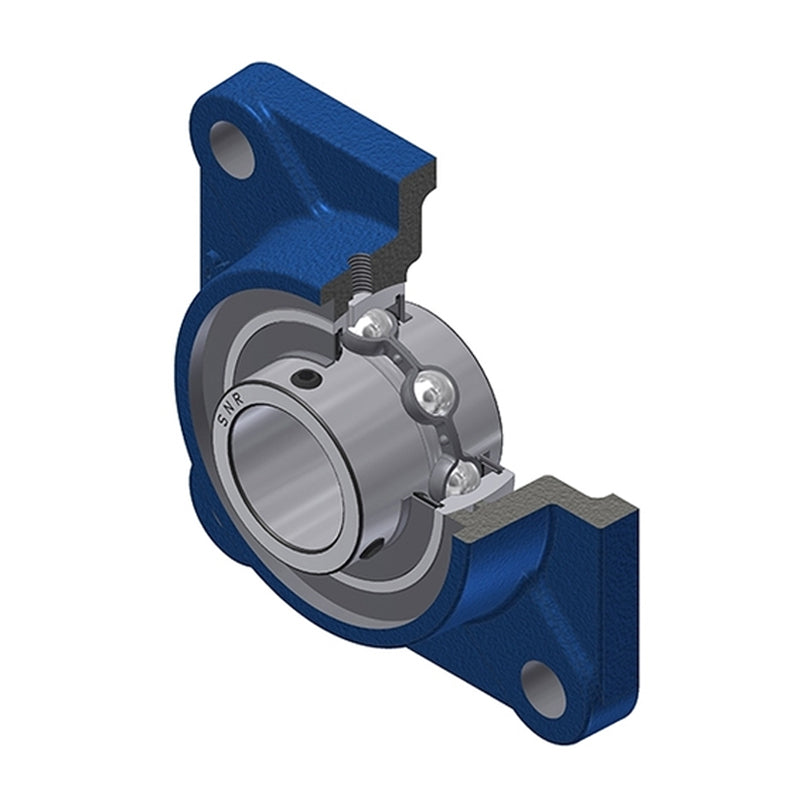

SNR UCF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
SNR UCF208N Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert - Allow 2-3 Days
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
3+
CHF 34.31
4+
CHF 32.39
9+
CHF 32.00
19+
CHF 31.62
49+
CHF 31.23
99+
CHF 30.84
499+
CHF 28.92
999+
CHF 28.53
1999+
CHF 28.15
2999+
CHF 27.76
4999+
CHF 26.99
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 15mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.89 kg |
