SKU: UCF211T20-SNR

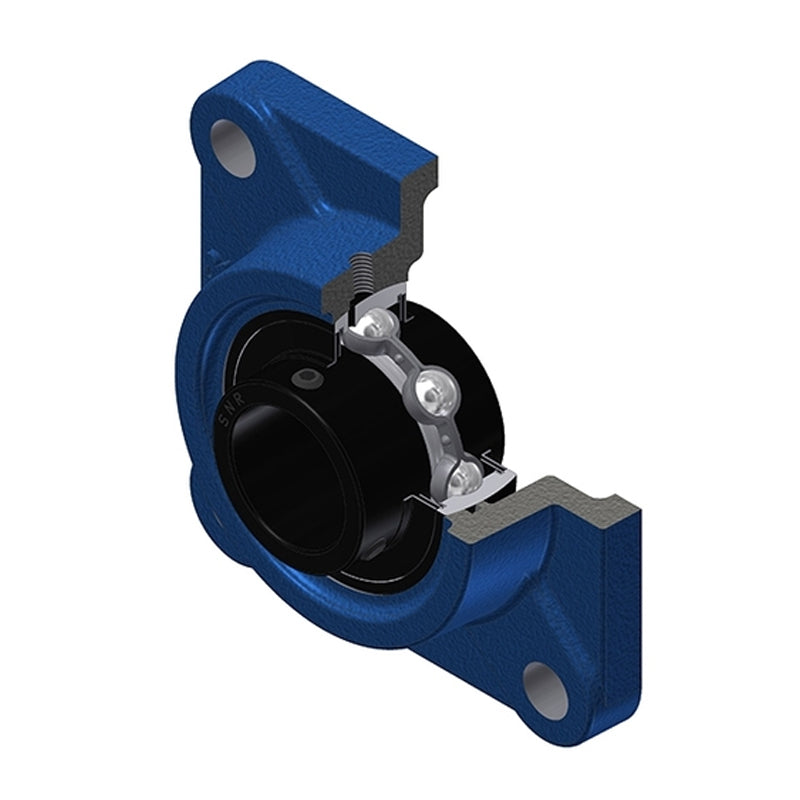

SNR UCF211T20 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCF211T20 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
In stock
Price Break
3+
CHF 175.51
4+
CHF 168.42
9+
CHF 164.87
19+
CHF 159.55
49+
CHF 156.01
99+
CHF 147.14
499+
CHF 124.10
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.4mm |
| B | 55.6mm |
| e | 25mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| S | 22.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.31 kg |
