SKU: UCF213-208D1-NTN

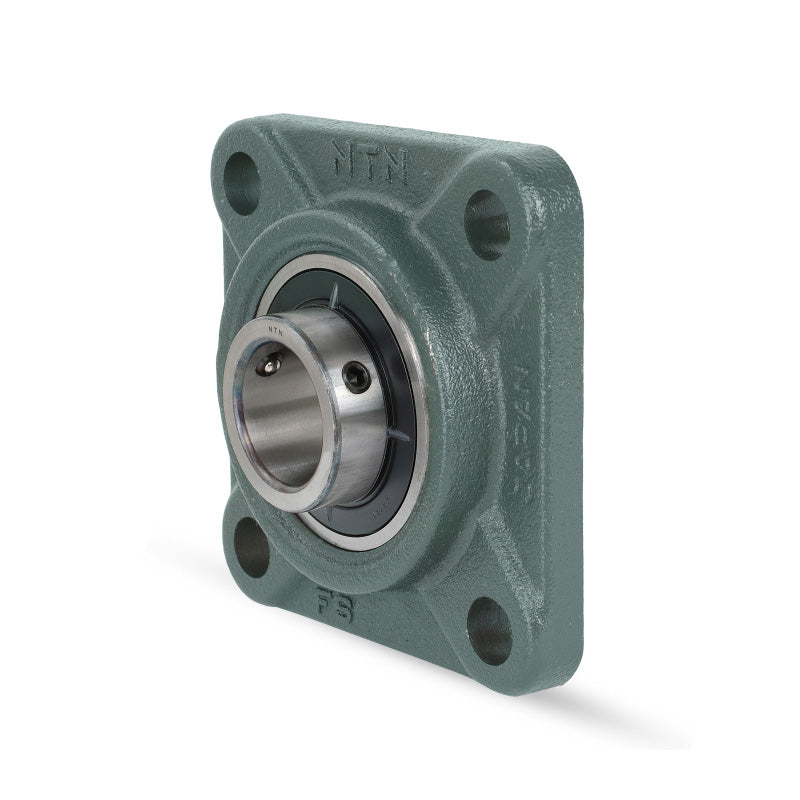

NTN UCF213-208D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
NTN UCF213-208D1 Imperial Four Bolt Square Cast Iron Flange Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
In stock
Price Break
3+
CHF 175.55
4+
CHF 168.45
9+
CHF 164.91
19+
CHF 159.59
49+
CHF 156.04
99+
CHF 147.18
499+
CHF 124.12
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCF
- Bolt Hole Centres:
- 5-55/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-1/2 inch |
| L | 7-3/8 inch |
| J | 5-55/64 inch |
| A<sub>2</sub> | 1-3/16 inch |
| A<sub>1</sub> | 7/8 inch |
| A | 1-31/32 inch |
| N | 3/4 inch |
| A<sub>0</sub> | 2-3/4 inch |
| B | 2.563 inch |
| S | 1 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 12 lbs |
