SKU: UCF216T20-SNR

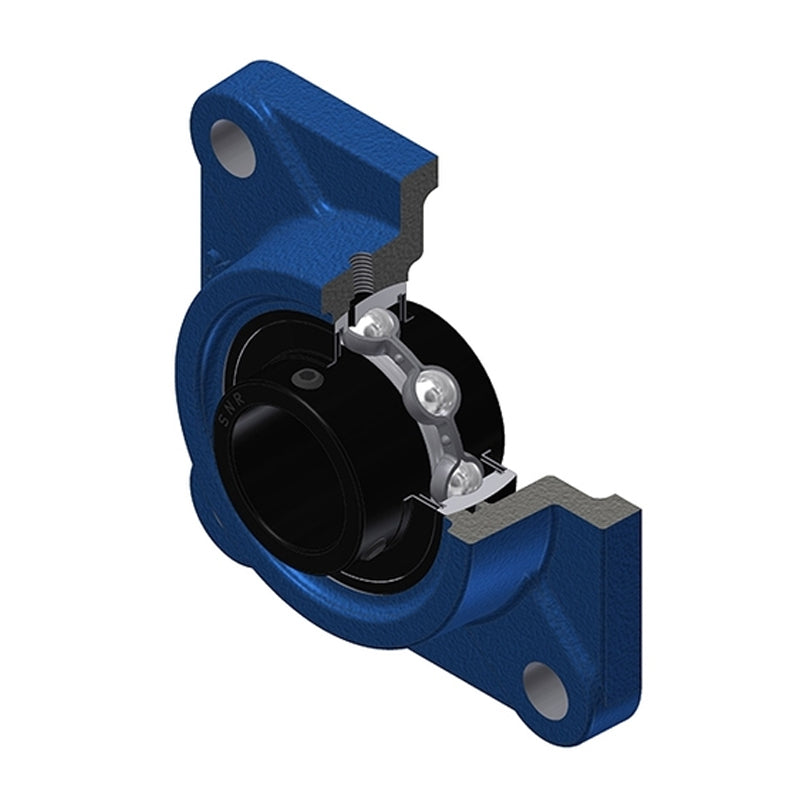

SNR UCF216T20 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCF216T20 Metric Four Bolt Square Cast Iron Flange Housing with 80mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 496.00
ex VAT
Regular price
Sale price
CHF 496.00
ex VAT
In stock
Price Break
3+
CHF 438.79
4+
CHF 421.06
9+
CHF 412.19
19+
CHF 398.90
49+
CHF 390.03
99+
CHF 367.87
499+
CHF 310.25
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 80mm
- Style:
- UCF
- Bolt Hole Centres:
- 165mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 57mm |
| A1 | 22mm |
| A2 | 83.3mm |
| B | 82.6mm |
| e | 34mm |
| J | 165mm |
| L | 208mm |
| N | 23mm |
| S | 33.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 72.5 kN |
| Static load C0 | 54.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.86 kg |
