SKU: UCF218T20-SNR

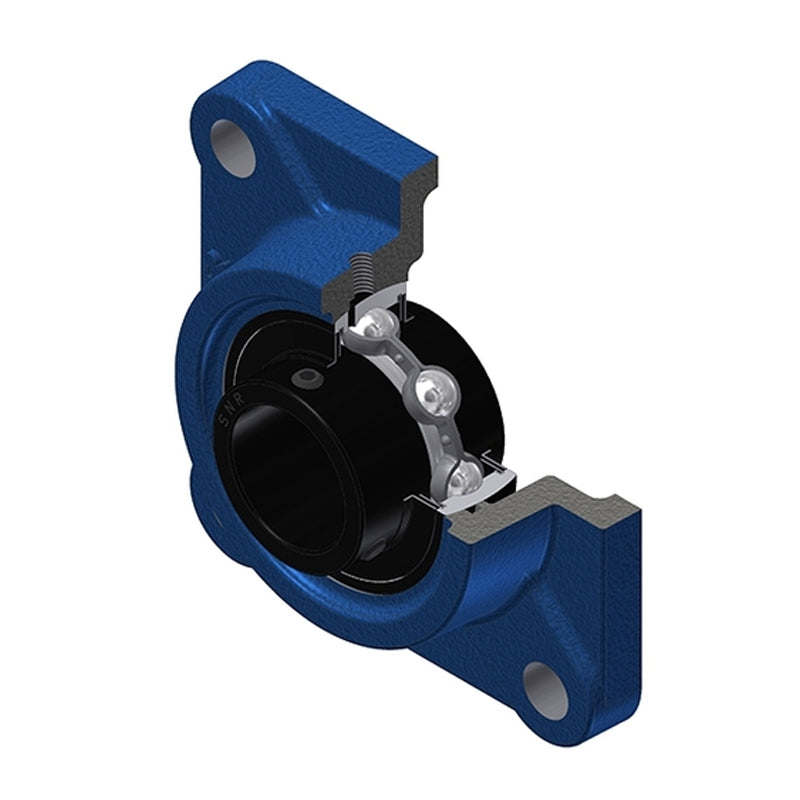

SNR UCF218T20 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCF218T20 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 675.00
ex VAT
Regular price
Sale price
CHF 675.00
ex VAT
In stock
Price Break
3+
CHF 573.45
4+
CHF 543.27
9+
CHF 513.09
19+
CHF 482.90
49+
CHF 470.83
99+
CHF 458.76
499+
CHF 398.40
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCF
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 68mm |
| A1 | 25mm |
| A2 | 96.3mm |
| B | 96mm |
| e | 40mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| S | 39.7mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 11.28 kg |
