SKU: UCF307D1-NTN

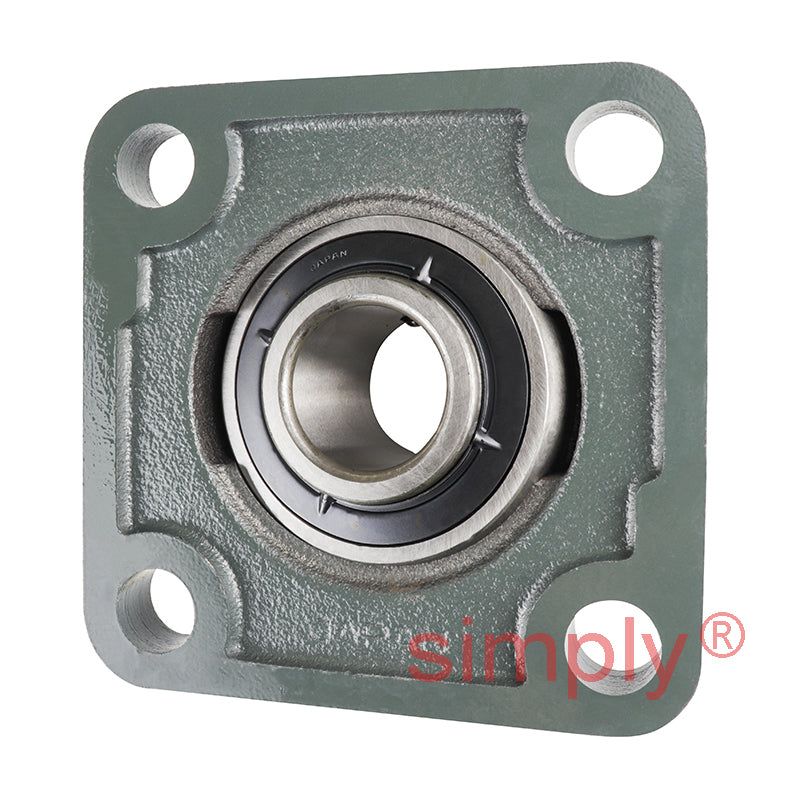

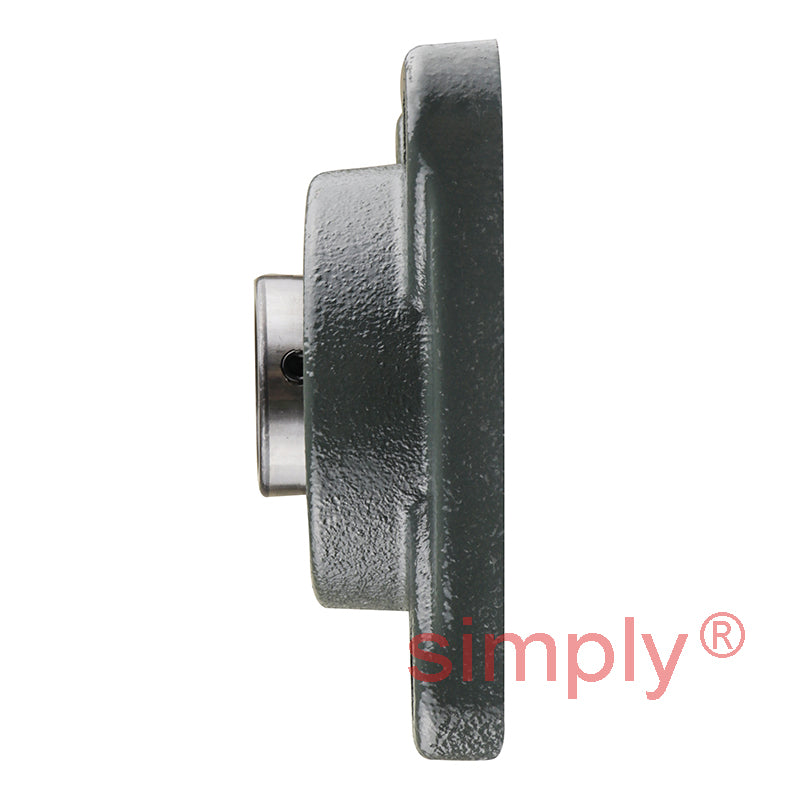

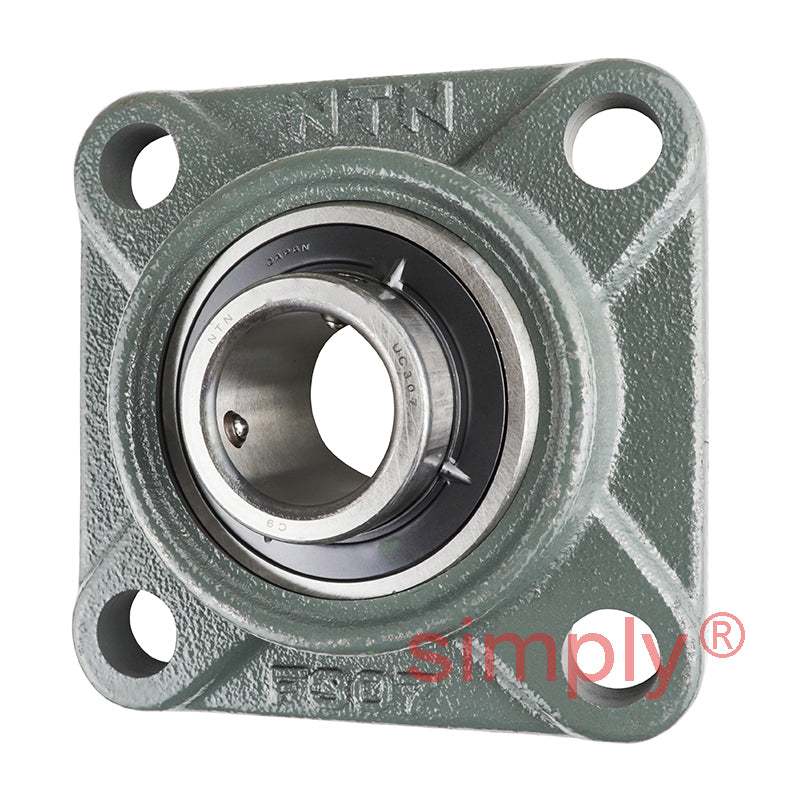

NTN UCF307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
NTN UCF307D1 Metric Four Bolt Square Cast Iron Flange Housing with 35mm Bore Insert
Regular price
CHF 65.00
ex VAT
Regular price
Sale price
CHF 65.00
ex VAT
In stock
Price Break
3+
CHF 51.25
4+
CHF 48.37
9+
CHF 47.79
19+
CHF 47.22
49+
CHF 46.64
99+
CHF 46.06
499+
CHF 43.19
999+
CHF 42.61
1999+
CHF 42.03
2999+
CHF 41.46
4999+
CHF 40.31
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCF
- Bolt Hole Centres:
- 100mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| L | 135mm |
| J | 100mm |
| A<sub>2</sub> | 20mm |
| A<sub>1</sub> | 16mm |
| A | 36mm |
| N | 19mm |
| A<sub>0</sub> | 49mm |
| B | 48mm |
| S | 19mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 37 kN |
| Static load C<sub>0r</sub> | 19.1 kN |
| Fatigue load limit C<sub>u</sub> | 1.47 kN |
| --- | Unit information |
| Mass | 2.1 kg |
