SKU: UCF324T04-SNR

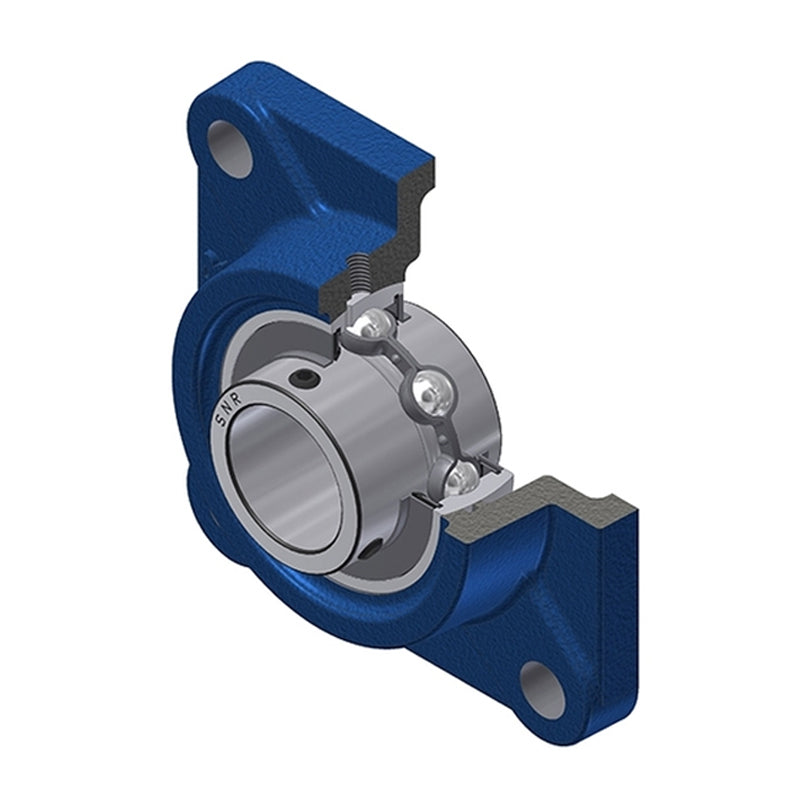

SNR UCF324T04 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert Low Temperature Version - Allow 2-3 Days
SNR UCF324T04 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert Low Temperature Version - Allow 2-3 Days
Regular price
CHF 2,587.00
ex VAT
Regular price
Sale price
CHF 2,587.00
ex VAT
In stock
Price Break
3+
CHF 2,199.46
4+
CHF 2,083.70
9+
CHF 1,967.94
19+
CHF 1,852.18
49+
CHF 1,805.87
99+
CHF 1,759.57
499+
CHF 1,528.05
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 120mm
- Style:
- UCF
- Bolt Hole Centres:
- 290mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 120mm |
| A | 110mm |
| A1 | 40mm |
| A2 | 140mm |
| B | 126mm |
| e | 65mm |
| J | 290mm |
| L | 370mm |
| N | 41mm |
| S | 51mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 228 kN |
| Static load C0 | 208 kN |
| --- | Unit information |
| Operating temperature min. | -40°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 75 Nm |
| Mass | 48.73 kg |
