SKU: UCFA205L3-SNR

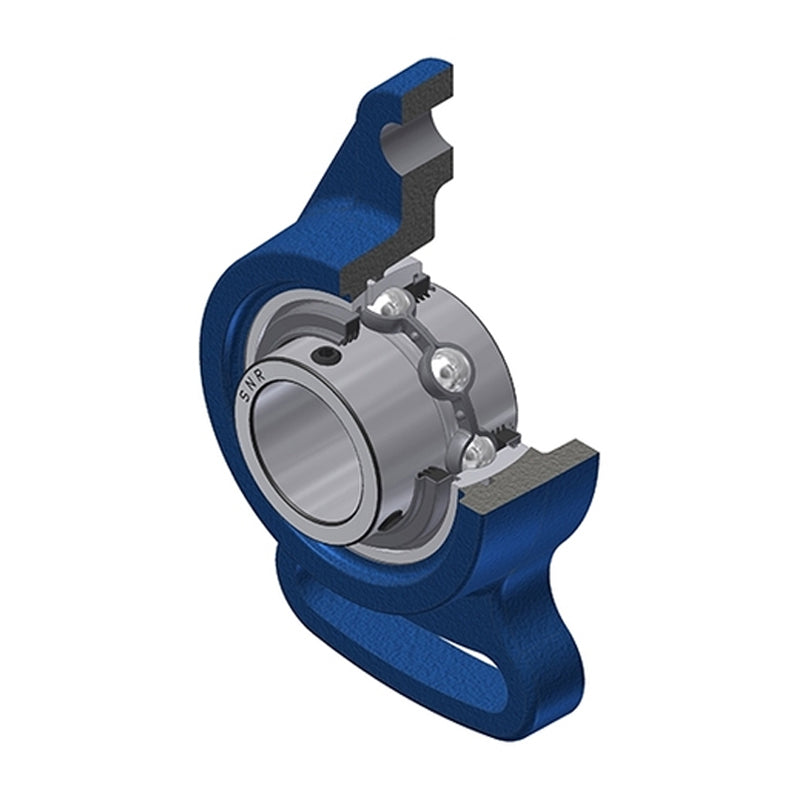

SNR UCFA205L3 Metric Cast Iron Adjustable Flange Unit with 25mm Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCFA205L3 Metric Cast Iron Adjustable Flange Unit with 25mm Insert with Triple Lip Seal - Allow 2-3 Days
Regular price CHF 45.00 ex VAT
Regular price Sale price CHF 45.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 39.50
4+ CHF 37.91
9+ CHF 37.11
19+ CHF 35.91
49+ CHF 35.11
99+ CHF 33.12
499+ CHF 27.93
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

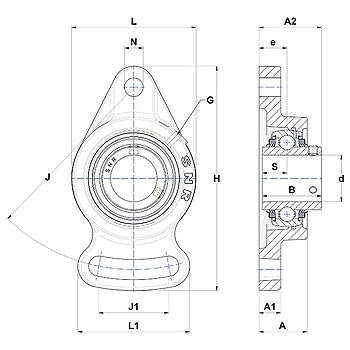

--- Dimensions
Shaft diameter d 25mm
A 27mm
A1 14mm
A2 35.7mm
B 34mm
e 16mm
H 125mm
J 98mm
J1 51mm
L 68mm
L1 65mm
N 12mm
S 14.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.61 kg
