SKU: UCFA208-25

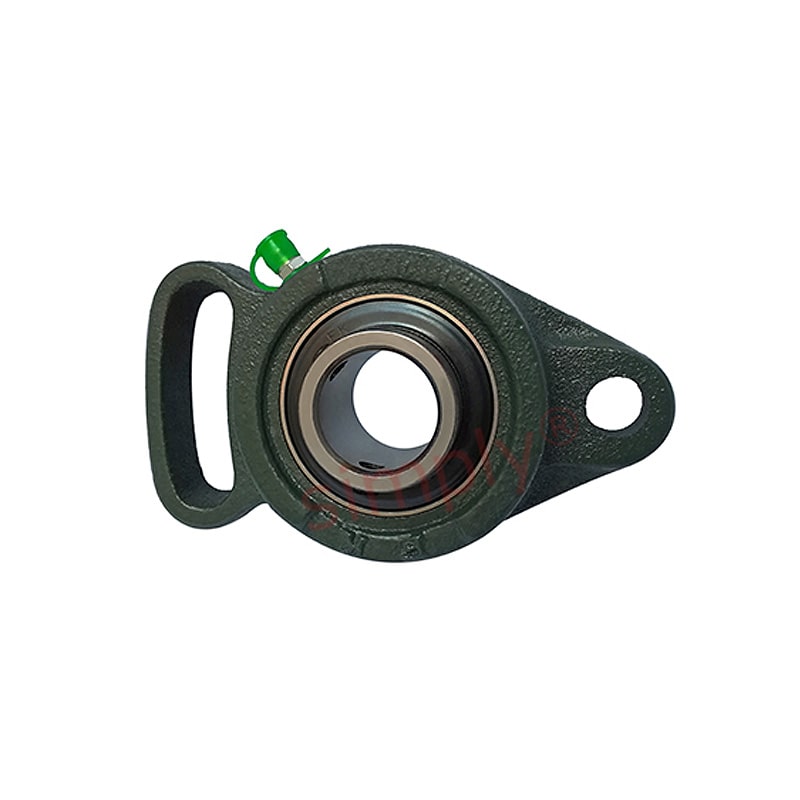

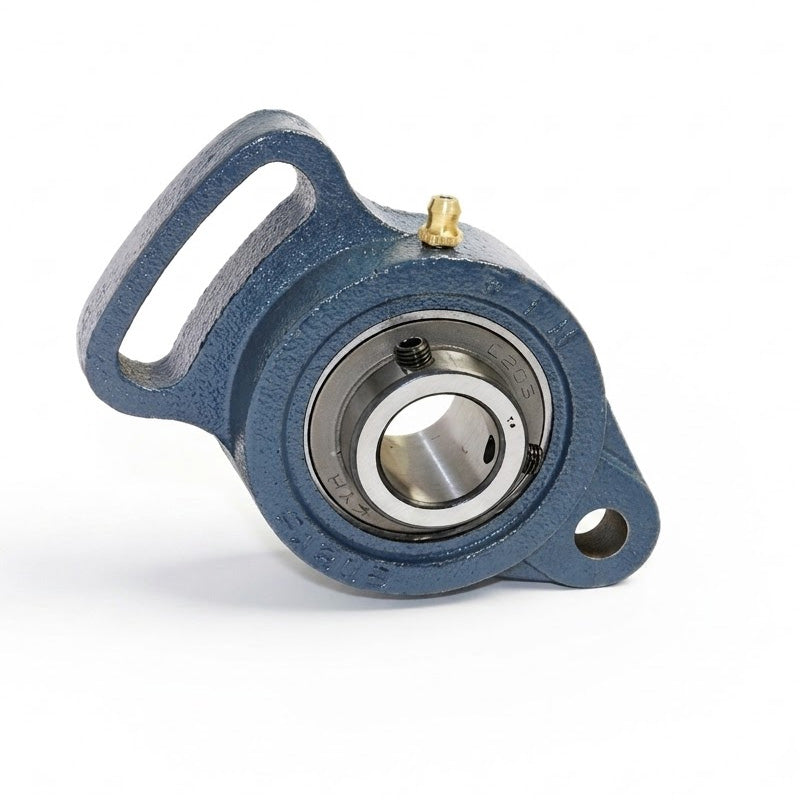

UCFA208-25 Imperial Cast Iron Adjustable Flange Unit with 1-9/16 inch Insert
UCFA208-25 Imperial Cast Iron Adjustable Flange Unit with 1-9/16 inch Insert
Regular price
CHF 27.00
ex VAT
Regular price
Sale price
CHF 27.00
ex VAT
In stock
Price Break
3+
CHF 20.88
4+
CHF 19.71
9+
CHF 19.47
19+
CHF 19.24
49+
CHF 19.00
99+
CHF 18.77
499+
CHF 17.60
999+
CHF 17.36
1999+
CHF 17.13
2999+
CHF 16.89
4999+
CHF 16.42
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 142.08mm = 5.594 (5-19/32) inch
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| a | 6-53/64 inch |
| e | 5-19/32 inch |
| i | 53/64 inch |
| g | 5/8 inch |
| l | 1-1/2 inch |
| s | 19/32 inch |
| b | 4-9/64 inch |
| z | 2-1/64 inch |
| f | 2-51/64 inch |
| c | 3-27/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 7/16 inch |
| Bearing no | UC208-25 |
| Housing no | FA208 |
| Weight | 1.74 kg |
