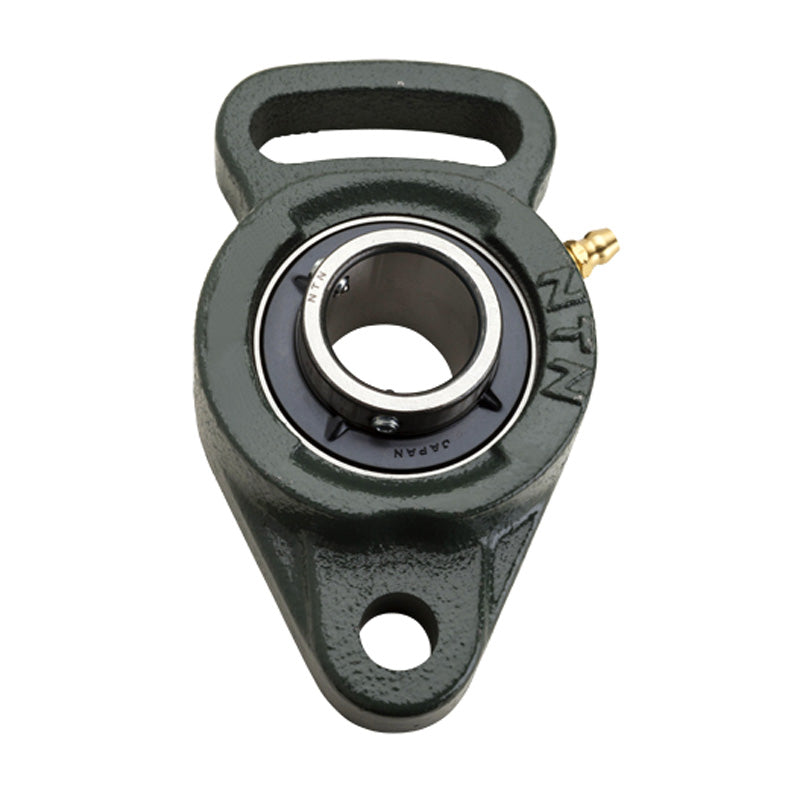

NTN UCFA210D1 Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days
NTN UCFA210D1 Metric Cast Iron Adjustable Flange Unit with 50mm Insert - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.81
4+
CHF 63.15
9+
CHF 61.82
19+
CHF 59.82
49+
CHF 58.49
99+
CHF 55.17
499+
CHF 46.53
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFA
- Bolt Hole Centres:
- 155mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 189mm |
| J | 155mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 18mm |
| A | 40mm |
| N | 17mm |
| N<sub>1</sub> | 75mm |
| L | 115mm |
| L<sub>1</sub> | 92mm |
| A<sub>0</sub> | 54.6mm |
| B | 51.6mm |
| S | 19mm |
| Fixing bolt | M14 |
| Mass | 2.2 kg |
