SKU: UCFA211-33

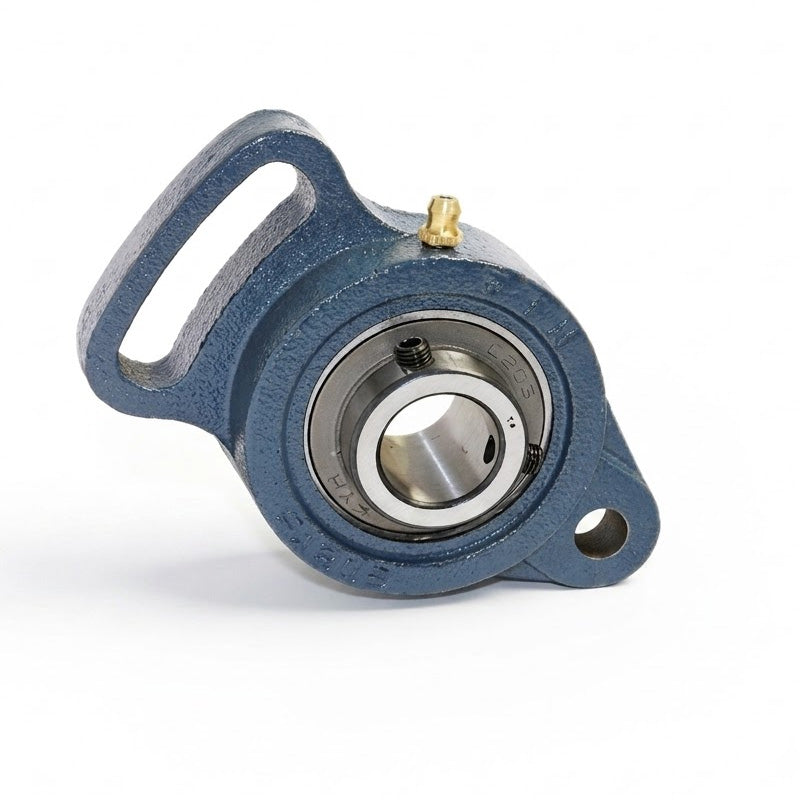

UCFA211-33 Imperial Cast Iron Adjustable Flange Unit with 2-1/16 inch Insert
UCFA211-33 Imperial Cast Iron Adjustable Flange Unit with 2-1/16 inch Insert
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
3+
CHF 33.72
4+
CHF 31.83
9+
CHF 31.45
19+
CHF 31.07
49+
CHF 30.69
99+
CHF 30.31
499+
CHF 28.42
999+
CHF 28.04
1999+
CHF 27.66
2999+
CHF 27.28
4999+
CHF 26.52
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 52.39mm = 2.063 (2-1/16) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 182.2mm = 7.173 (7-11/64) inch
Technical
Technical
| d | 2-1/16 inch |
|---|---|
| a | 8-1/2 inch |
| e | 7-11/64 inch |
| i | 63/64 inch |
| g | 25/32 inch |
| l | 1-47/64 inch |
| s | 43/64 inch |
| b | 5-51/64 inch |
| z | 2-5/16 inch |
| f | 3-25/64 inch |
| c | 4-3/32 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bolt size | 1/2 inch |
| Bearing no | UC211-33 |
| Housing no | FA211 |
| Weight | 3.2 kg |
