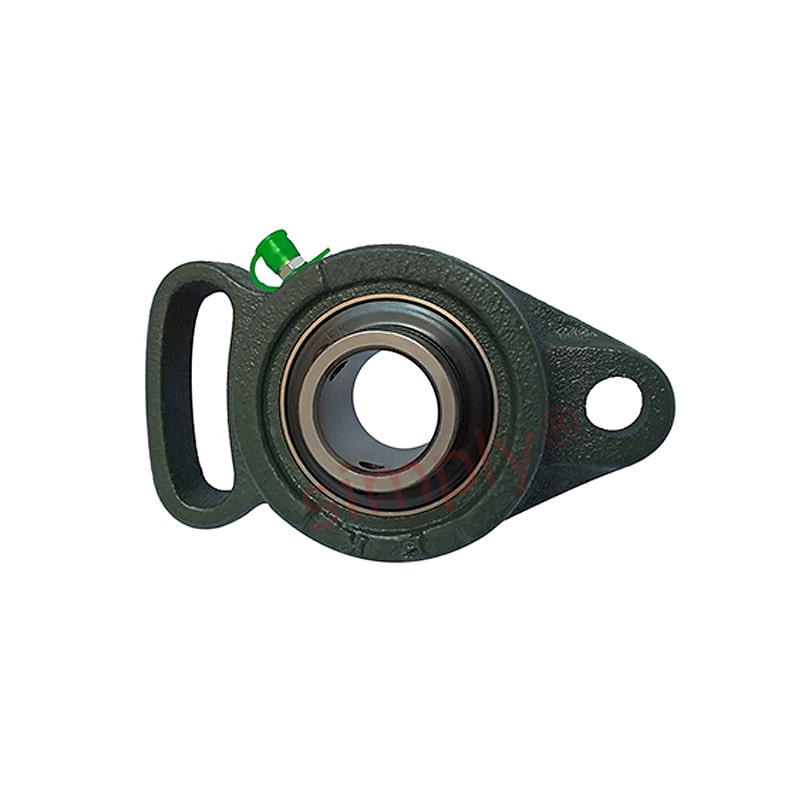

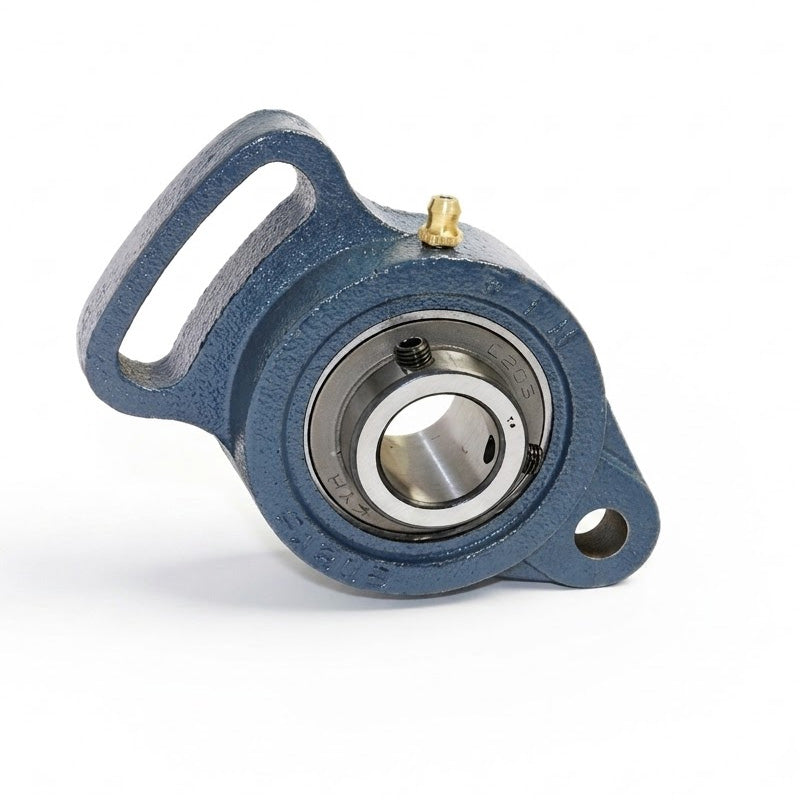

UCFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert
UCFA212 Metric Cast Iron Adjustable Flange Unit with 60mm Insert
Regular price
CHF 47.37
ex VAT
Regular price
Sale price
CHF 47.37
ex VAT
In stock
Price Break
10+
CHF 42.16
19+
CHF 39.79
29+
CHF 39.32
39+
CHF 38.84
49+
CHF 38.37
74+
CHF 37.90
99+
CHF 35.53
199+
CHF 35.05
249+
CHF 34.58
499+
CHF 34.11
999+
CHF 33.16
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFA
- Bolt Hole Centres:
- 202mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 240mm |
| e | 202mm |
| i | 29mm |
| g | 20mm |
| l | 48mm |
| s | 19mm |
| b | 140mm |
| z | 68.7mm |
| f | 100mm |
| c | 118mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M16 |
| Bearing no | UC212 |
| Housing no | FA212 |
| Weight | 3.76 kg |
