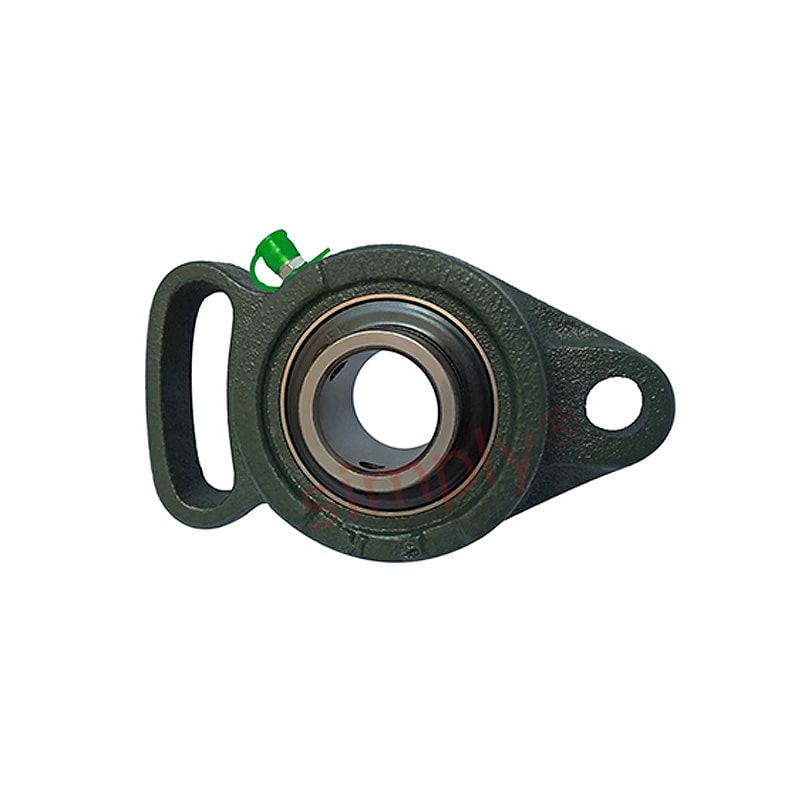

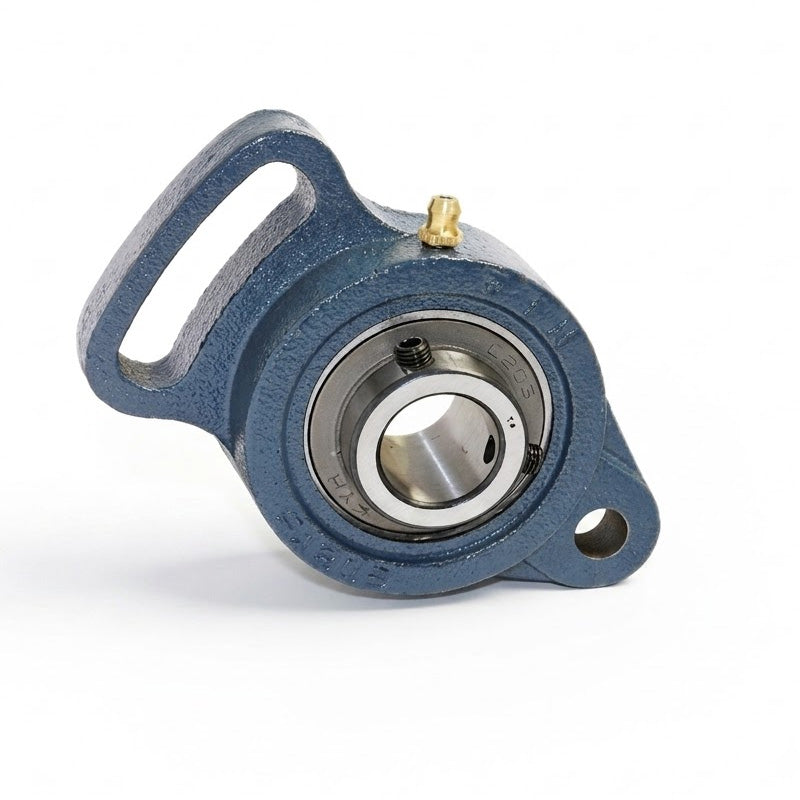

UCFA213 Metric Cast Iron Adjustable Flange Unit with 65mm Insert
UCFA213 Metric Cast Iron Adjustable Flange Unit with 65mm Insert
Regular price
CHF 66.32
ex VAT
Regular price
Sale price
CHF 66.32
ex VAT
In stock
Price Break
10+
CHF 59.02
19+
CHF 55.71
29+
CHF 55.05
39+
CHF 54.38
49+
CHF 53.72
74+
CHF 53.06
99+
CHF 49.74
199+
CHF 49.08
249+
CHF 48.41
499+
CHF 47.75
999+
CHF 46.42
Couldn't load pickup availability
Share this product
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFA
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 250mm |
| e | 210mm |
| i | 30mm |
| g | 20mm |
| l | 50mm |
| s | 19mm |
| b | 155mm |
| z | 69.7mm |
| f | 102mm |
| c | 122mm |
| B | 65.1mm |
| n | 25.4mm |
| Bolt size | M16 |
| Bearing no | UC213 |
| Housing no | FA213 |
| Weight | 4.7 kg |
