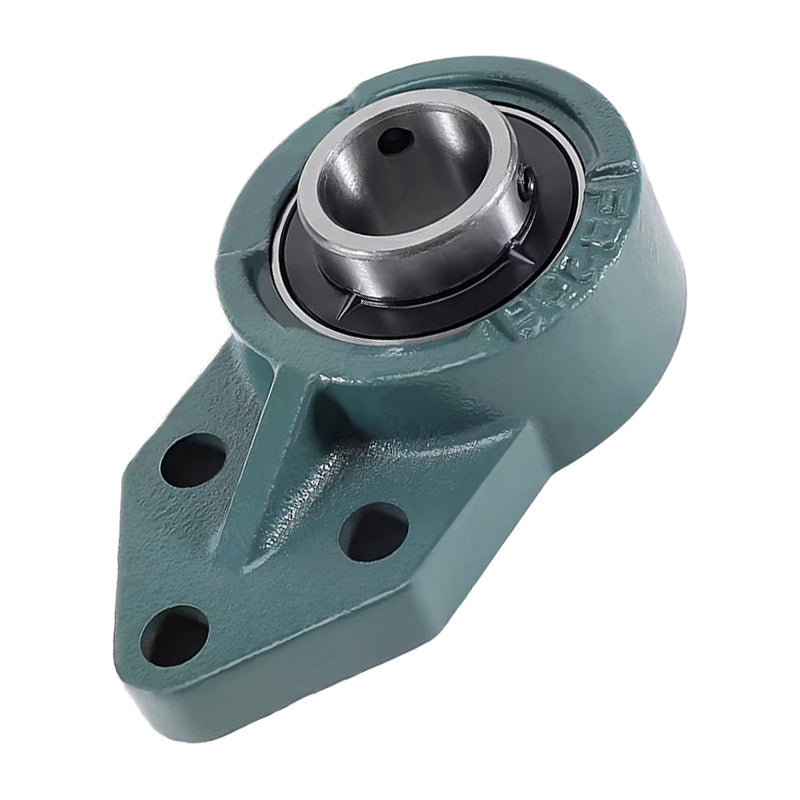

UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
UCFB203 Metric 3 Bolt Cast Iron Bracket Flange Bearing 17mm Bore
Regular price
CHF 18.41
ex VAT
Regular price
Sale price
CHF 18.41
ex VAT
In stock
Price Break
10+
CHF 16.38
19+
CHF 15.46
29+
CHF 15.28
39+
CHF 15.10
49+
CHF 14.91
74+
CHF 14.73
99+
CHF 13.81
199+
CHF 13.62
249+
CHF 13.44
499+
CHF 13.26
999+
CHF 12.89
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 17mm |
|---|---|
| w | 110mm |
| b | 62mm |
| k | 52mm |
| a | 52mm |
| l | 25.5mm |
| s | 10mm |
| g | 13mm |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC203 |
| Housing no | FB203 |
| Weight | 0.567 kg |
