SKU: UCFB204

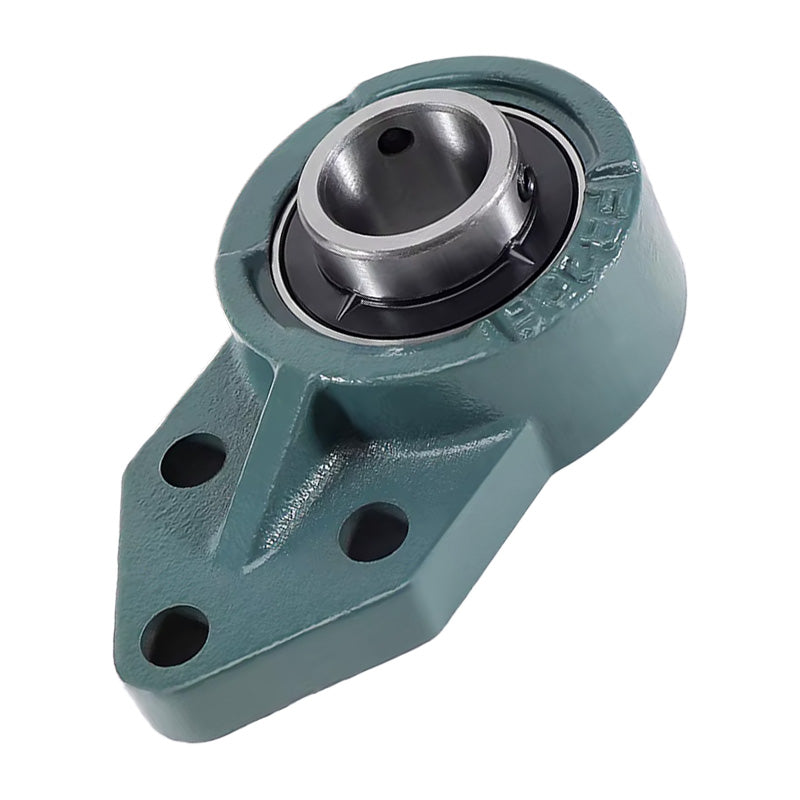

UCFB204 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
UCFB204 Metric 3 Bolt Cast Iron Bracket Flange Bearing 20mm Bore
Regular price
CHF 11.92
ex VAT
Regular price
Sale price
CHF 11.92
ex VAT
In stock
Price Break
10+
CHF 10.61
19+
CHF 10.01
29+
CHF 9.89
39+
CHF 9.77
49+
CHF 9.66
74+
CHF 9.54
99+
CHF 8.94
199+
CHF 8.82
249+
CHF 8.70
499+
CHF 8.58
999+
CHF 8.34
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Style:
- UCFB
- Bolt Hole Centres:
- 32.15mm = 1.266 (1-17/64) inch
Technical
Technical
| d | 20mm |
|---|---|
| w | 4-11/32 inch |
| b | 2-7/16 inch |
| k | 2-1/16 inch |
| a | 2-1/16 inch |
| l | 1 inch |
| s | 25/64 inch |
| g | 1/2 inch |
| h | 1-21/32 inch |
| j | 1-1/16 inch |
| e | 1-17/64 inch |
| i | 19/32 inch |
| z | 1-5/16 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC204 |
| Housing no | FB204 |
| Weight | 0.546 kg |
