SKU: UCFB206

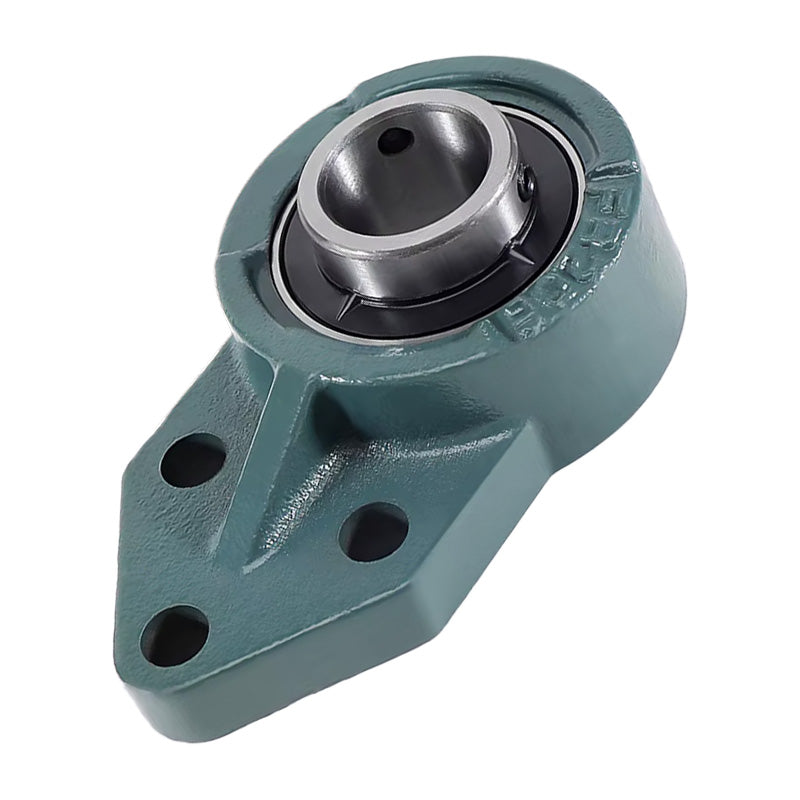

UCFB206 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore
UCFB206 Metric 3 Bolt Cast Iron Bracket Flange Bearing 30mm Bore
Regular price
CHF 15.86
ex VAT
Regular price
Sale price
CHF 15.86
ex VAT
In stock
Price Break
10+
CHF 14.12
19+
CHF 13.32
29+
CHF 13.16
39+
CHF 13.01
49+
CHF 12.85
74+
CHF 12.69
99+
CHF 11.90
199+
CHF 11.74
249+
CHF 11.58
499+
CHF 11.42
999+
CHF 11.10
Couldn't load pickup availability
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCFB
- Bolt Hole Centres:
- 40mm
Technical
Technical
| d | 30mm |
|---|---|
| w | 130mm |
| b | 78mm |
| k | 55mm |
| a | 65mm |
| l | 31mm |
| s | 10mm |
| g | 13mm |
| h | 50mm |
| j | 29mm |
| e | 40mm |
| i | 18mm |
| z | 40.2mm |
| B | 38.1mm |
| n | 15.9mm |
| Bolt size | M8 |
| Bearing no | UC206 |
| Housing no | FB206 |
| Weight | 0.879 kg |
