SKU: UCFB208-24

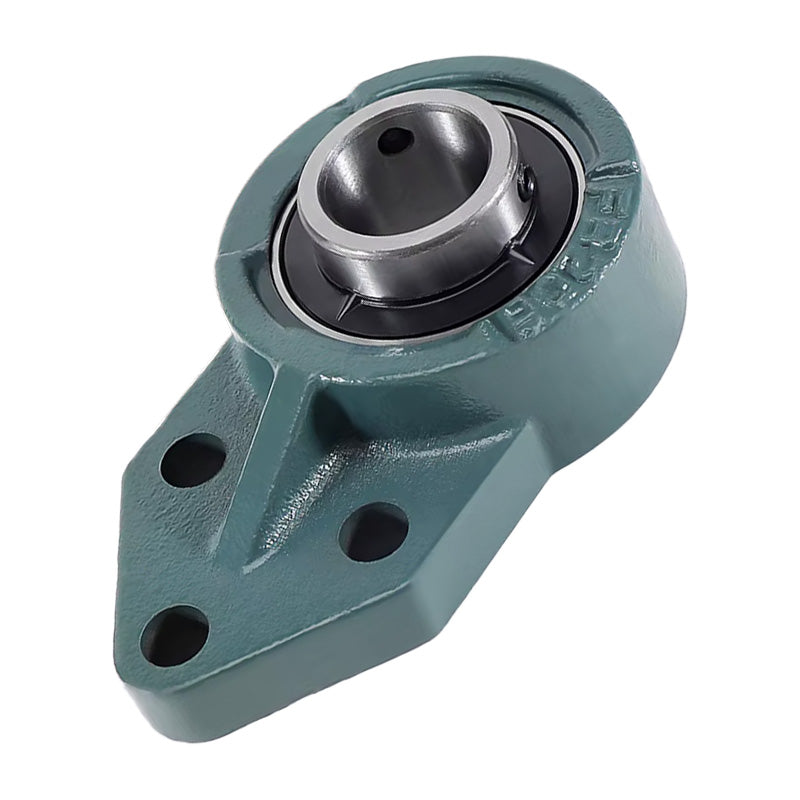

UCFB208-24 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/2 inch Bore
UCFB208-24 Imperial 3 Bolt Cast Iron Bracket Flange Bearing 1-1/2 inch Bore
Regular price
CHF 27.00
ex VAT
Regular price
Sale price
CHF 27.00
ex VAT
In stock
Price Break
3+
CHF 21.37
4+
CHF 20.17
9+
CHF 19.93
19+
CHF 19.69
49+
CHF 19.45
99+
CHF 19.21
499+
CHF 18.01
999+
CHF 17.77
1999+
CHF 17.53
2999+
CHF 17.29
4999+
CHF 16.81
Description
Description
UCFB200 Series Normal Duty 3 Bolt Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- UCFB
- Bolt Hole Centres:
- 50.01mm = 1.969 (1-31/32) inch
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| w | 6-15/32 inch |
| b | 3-15/16 inch |
| k | 2-27/32 inch |
| a | 3-1/16 inch |
| l | 1-13/32 inch |
| s | 15/32 inch |
| g | 5/8 inch |
| h | 2-23/64 inch |
| j | 1-39/64 inch |
| e | 1-31/32 inch |
| i | 53/64 inch |
| z | 1-1/64 inch |
| B | 1.937 inch |
| n | 0.748 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC208-24 |
| Housing no | FB208 |
| Weight | 1.701 kg |
