SKU: UCFC.206.TS.CHAL

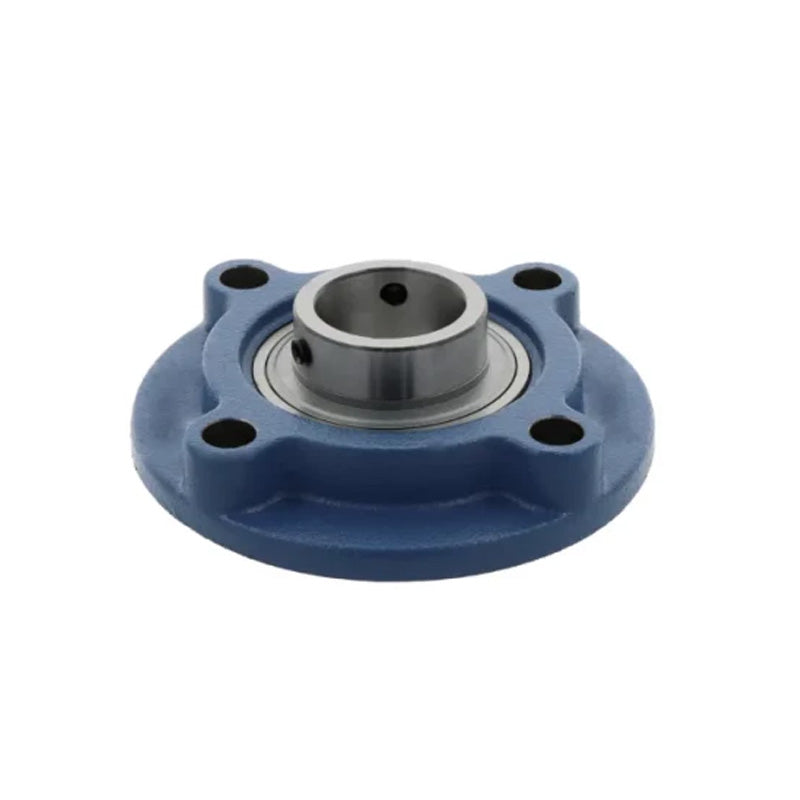

Challenge / FK UCFC206 Metric Cast Iron Four Bolt Round Flanged Housing with 30mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC206 Metric Cast Iron Four Bolt Round Flanged Housing with 30mm Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 40.53
ex VAT
Regular price
Sale price
CHF 40.53
ex VAT
Equivalent to: UCFC.206
In stock
Price Break
10+
CHF 36.07
19+
CHF 34.05
29+
CHF 33.64
39+
CHF 33.23
49+
CHF 32.83
74+
CHF 32.42
99+
CHF 30.40
199+
CHF 29.99
249+
CHF 29.59
499+
CHF 29.18
999+
CHF 28.37
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.206
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 30mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Shaft Diameter d | 30mm |
|---|---|
| a | 125mm |
| p | 100mm |
| e | 70.7mm |
| i | 10mm |
| g | 23mm |
| l | 31mm |
| s | 12 inch |
| j | 8mm |
| k | 8mm |
| f | 80mm |
| z | 32.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10mm |
| Insert No | UC206 |
| Housing No | FC206 |
