SKU: UCFC.209.TS.CHAL

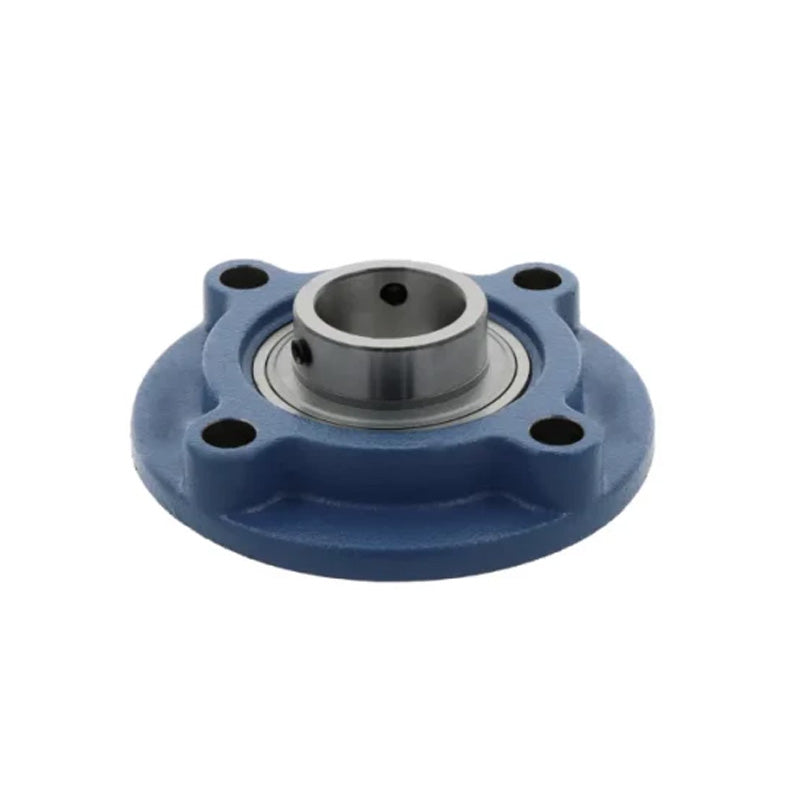

Challenge / FK UCFC209 Metric Cast Iron Four Bolt Round Flanged Housing with 45mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC209 Metric Cast Iron Four Bolt Round Flanged Housing with 45mm Bore 160mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 69.76
ex VAT
Regular price
Sale price
CHF 69.76
ex VAT
Equivalent to: UCFC.209
In stock
Price Break
10+
CHF 62.09
19+
CHF 58.60
29+
CHF 57.90
39+
CHF 57.20
49+
CHF 56.51
74+
CHF 55.81
99+
CHF 52.32
199+
CHF 51.62
249+
CHF 50.92
499+
CHF 50.23
999+
CHF 48.83
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.209
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 45mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| Shaft Diameter d | 45mm |
|---|---|
| a | 160mm |
| p | 132mm |
| e | 93.3mm |
| i | 10mm |
| g | 26mm |
| l | 38mm |
| s | 16 inch |
| j | 12mm |
| k | 14mm |
| f | 105mm |
| z | 40.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt Size | M14mm |
| Insert No | UC209 |
| Housing No | FC209 |
