SKU: UCFC.211-32

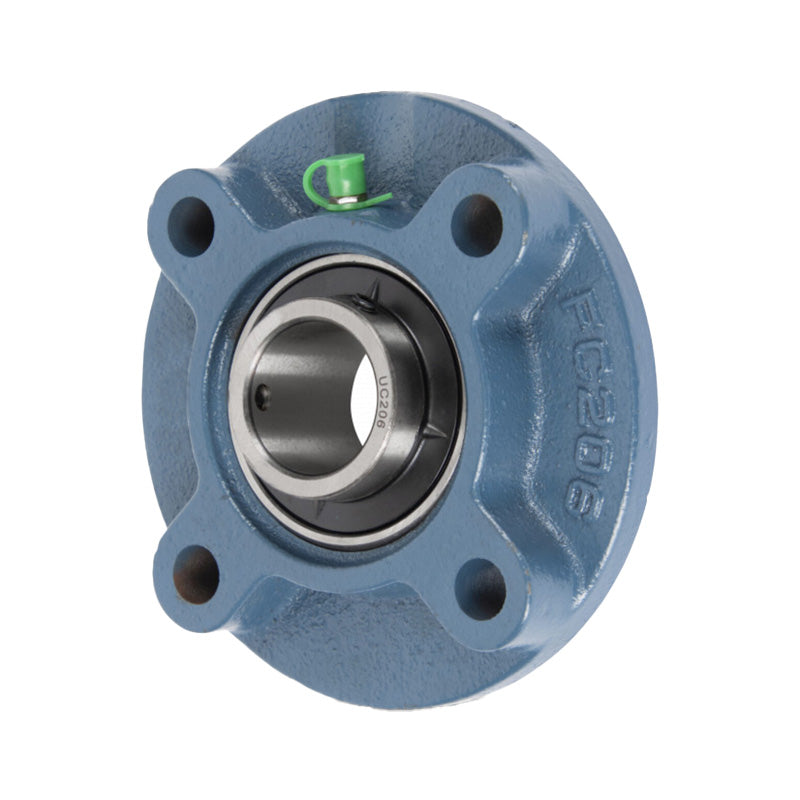

UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert
UCFC211-32 Imperial Four Bolt Cast Iron Round Flanged Housing with 2 inch Insert
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
3+
CHF 77.02
4+
CHF 72.69
9+
CHF 71.83
19+
CHF 70.96
49+
CHF 70.09
99+
CHF 69.23
499+
CHF 64.90
999+
CHF 64.04
1999+
CHF 63.17
2999+
CHF 62.31
4999+
CHF 60.58
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 150.02mm = 150.02 (5-29/32) inch
Technical
Technical
| d | 2 inch |
|---|---|
| a | 7-9/32 inch |
| P | 5-29/32 inch |
| e | 4-11/64 inch |
| i | 33/64 inch |
| L | 1-21/32 inch |
| s | 3/4 inch |
| j | 15/32 inch |
| k | 19/32 inch |
| g | 1-7/32 inch |
| f | 4.9213 inch |
| z | 1-13/16 inch |
| Bi | 2.1890 inch |
| n | 0.8740 inch |
| Bolt Size | 5/8 inch |
| Weight | 4 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
