SKU: UCFC.213.TS.CHAL

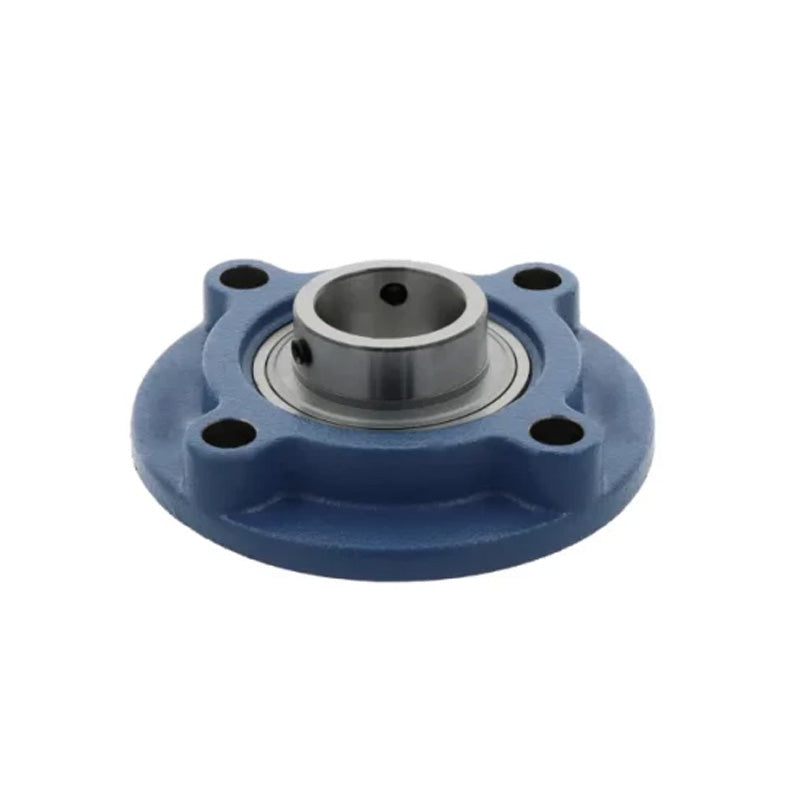

Challenge / FK UCFC213 Metric Cast Iron Four Bolt Round Flanged Housing with 65mm Bore 205mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC213 Metric Cast Iron Four Bolt Round Flanged Housing with 65mm Bore 205mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 227.61
ex VAT
Regular price
Sale price
CHF 227.61
ex VAT
Equivalent to: UCFC.213
In stock
Price Break
10+
CHF 202.57
19+
CHF 191.19
29+
CHF 188.92
39+
CHF 186.64
49+
CHF 184.36
74+
CHF 182.09
99+
CHF 170.71
199+
CHF 168.43
249+
CHF 166.16
499+
CHF 163.88
999+
CHF 159.33
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.213
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 170mm
Technical
Technical
| Shaft Diameter d | 65mm |
|---|---|
| a | 205mm |
| p | 170mm |
| e | 120.2mm |
| i | 16mm |
| g | 36mm |
| l | 50mm |
| s | 19 inch |
| j | 14mm |
| k | 15mm |
| f | 145mm |
| z | 55.7mm |
| Bi | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16mm |
| Insert No | UC213 |
| Housing No | FC213 |
