SKU: UCFC.214-44
UCFC214-44 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/4 inch Insert
UCFC214-44 Imperial Four Bolt Cast Iron Round Flanged Housing with 2-3/4 inch Insert
Regular price
CHF 100.00
ex VAT
Regular price
Sale price
CHF 100.00
ex VAT
In stock
Price Break
3+
CHF 79.15
4+
CHF 74.70
9+
CHF 73.81
19+
CHF 72.92
49+
CHF 72.03
99+
CHF 71.14
499+
CHF 66.70
999+
CHF 65.81
1999+
CHF 64.92
2999+
CHF 64.03
4999+
CHF 62.25
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCFC
- Pitch Circle Diameter:
- 177.01mm = 177.01 (6-31/32) inch

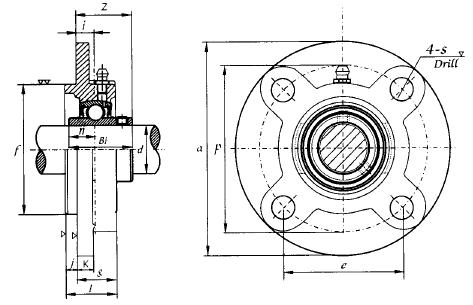

Technical
Technical
| d | 2-3/4 inch |
|---|---|
| a | 8-15/32 inch |
| P | 6-31/32 inch |
| e | 4-49/64 inch |
| i | 43/64 inch |
| L | 2-1/8 inch |
| s | 3/4 inch |
| j | 35/64 inch |
| k | 23/32 inch |
| g | 1-9/16 inch |
| f | 5.9055 inch |
| z | 2-13/32 inch |
| Bi | 2.9370 inch |
| n | 1.1890 inch |
| Bolt Size | 5/8 inch |
| Weight | 6.8 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
