SKU: UCFC.216.TS.CHAL

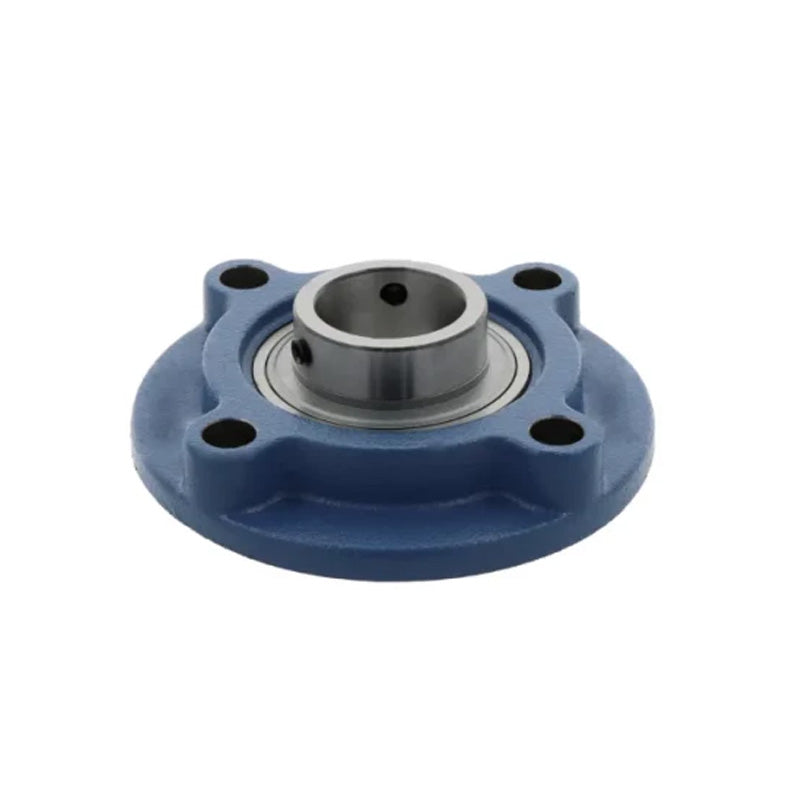

Challenge / FK UCFC216 Metric Cast Iron Four Bolt Round Flanged Housing with 80mm Bore 240mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFC216 Metric Cast Iron Four Bolt Round Flanged Housing with 80mm Bore 240mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 458.99
ex VAT
Regular price
Sale price
CHF 458.99
ex VAT
Equivalent to: UCFC.216
In stock
Price Break
10+
CHF 408.50
19+
CHF 385.55
29+
CHF 380.96
39+
CHF 376.37
49+
CHF 371.78
74+
CHF 367.19
99+
CHF 344.24
199+
CHF 339.65
249+
CHF 335.06
499+
CHF 330.47
999+
CHF 321.29
Couldn't load pickup availability
Description
Description
UCFC Cast Iron 4 Bolt Round Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFC.216
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 80mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 200mm
Technical
Technical
| Shaft Diameter d | 80mm |
|---|---|
| a | 240mm |
| p | 200mm |
| e | 141.4mm |
| i | 18mm |
| g | 42mm |
| l | 58mm |
| s | 23 inch |
| j | 16mm |
| k | 18mm |
| f | 170mm |
| z | 67.3mm |
| Bi | 82.6mm |
| n | 33.3mm |
| Bolt Size | M20mm |
| Insert No | UC216 |
| Housing No | FC216 |
