SKU: UCFC213D1-NTN

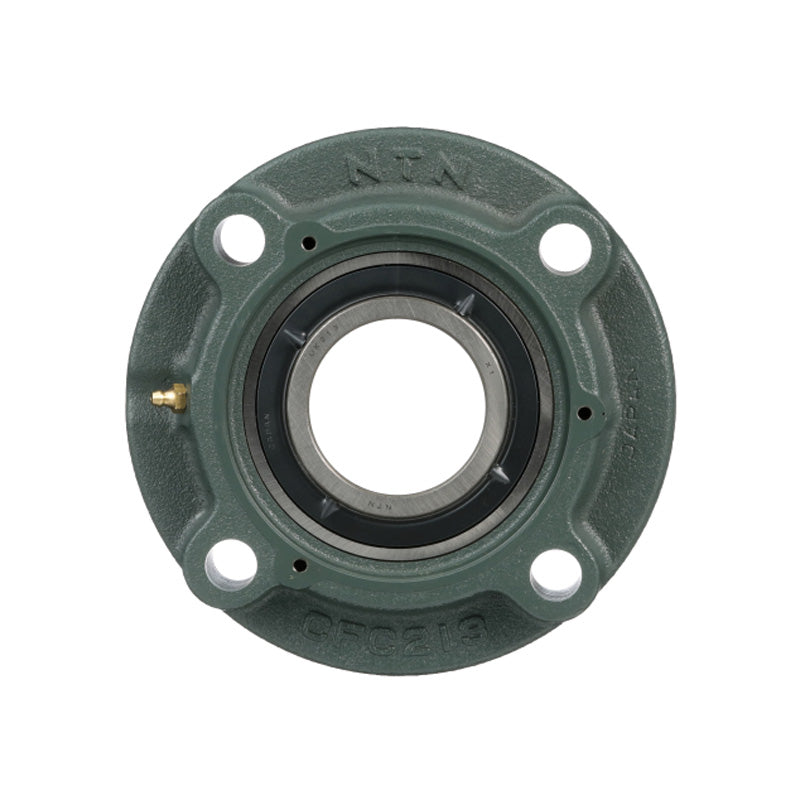

NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
NTN UCFC213D1 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert - Allow 2-3 Days
Regular price
CHF 97.00
ex VAT
Regular price
Sale price
CHF 97.00
ex VAT
In stock
Price Break
3+
CHF 76.58
4+
CHF 72.27
9+
CHF 71.41
19+
CHF 70.55
49+
CHF 69.69
99+
CHF 68.83
499+
CHF 64.53
999+
CHF 63.67
1999+
CHF 62.81
2999+
CHF 61.95
4999+
CHF 60.23
Description
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCFC
- Pitch Circle Diameter:
- 120.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 205mm |
| J | 170mm |
| (J<sub>1</sub>) | 120.2mm |
| A<sub>2</sub> | 16mm |
| N | 19mm |
| A<sub>3</sub> | 14mm |
| A<sub>1</sub> | 36mm |
| A | 50mm |
| H<sub>3</sub> | 145mm |
| A<sub>0</sub> | 69.7mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 63.5 kN |
| Static load C<sub>0r</sub> | 40 kN |
| Fatigue load limit C<sub>u</sub> | 3.15 kN |
| --- | Unit information |
| Mass | 5.8 kg |
