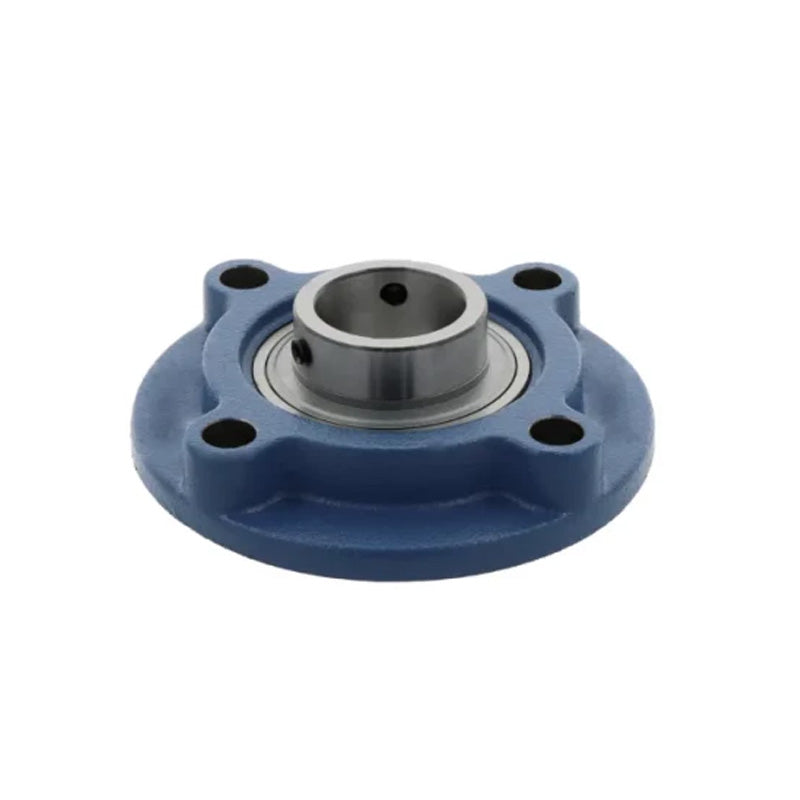

UCFCX09 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
UCFCX09 Metric Four Bolt Cast Iron Round Flanged Housing with 45mm Insert
Regular price
CHF 39.59
ex VAT
Regular price
Sale price
CHF 39.59
ex VAT
In stock
Price Break
10+
CHF 35.24
19+
CHF 33.26
29+
CHF 32.86
39+
CHF 32.46
49+
CHF 32.07
74+
CHF 31.67
99+
CHF 29.69
199+
CHF 29.30
249+
CHF 28.90
499+
CHF 28.50
999+
CHF 27.71
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 91.9mm
Technical
Technical
| d | 45mm |
|---|---|
| a | 155mm |
| p | 130mm |
| (e) | 91.9mm |
| i | 8mm |
| s | 14mm |
| j | 12mm |
| k | 11mm |
| g | 25mm |
| f | 108mm |
| z | 40.6mm |
| B | 51.6mm |
| n | 19mm |
| Bolt size | M12 |
| Bearing no | UCX09 |
| Housing no | FCX09 |
| Weight | 2.4 kg |
