SKU: UCFCX13

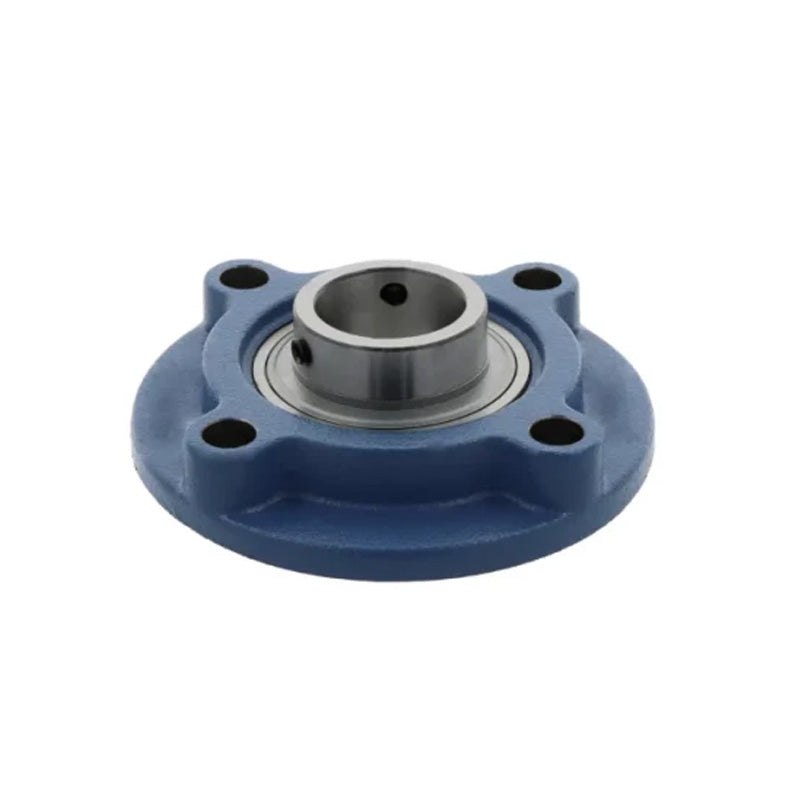

UCFCX13 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert
UCFCX13 Metric Four Bolt Cast Iron Round Flanged Housing with 65mm Insert
Regular price
CHF 52.67
ex VAT
Regular price
Sale price
CHF 52.67
ex VAT
In stock
Price Break
10+
CHF 46.88
19+
CHF 44.24
29+
CHF 43.72
39+
CHF 43.19
49+
CHF 42.66
74+
CHF 42.14
99+
CHF 39.50
199+
CHF 38.98
249+
CHF 38.45
499+
CHF 37.92
999+
CHF 36.87
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 116.7mm
Technical
Technical
| d | 65mm |
|---|---|
| a | 194mm |
| p | 165mm |
| (e) | 116.7mm |
| i | 11mm |
| s | 16mm |
| j | 20mm |
| k | 14mm |
| g | 33mm |
| f | 140mm |
| z | 55.4mm |
| B | 74.6mm |
| n | 30.2mm |
| Bolt size | M14 |
| Bearing no | UCX13 |
| Housing no | FCX13 |
| Weight | 4.9 kg |
