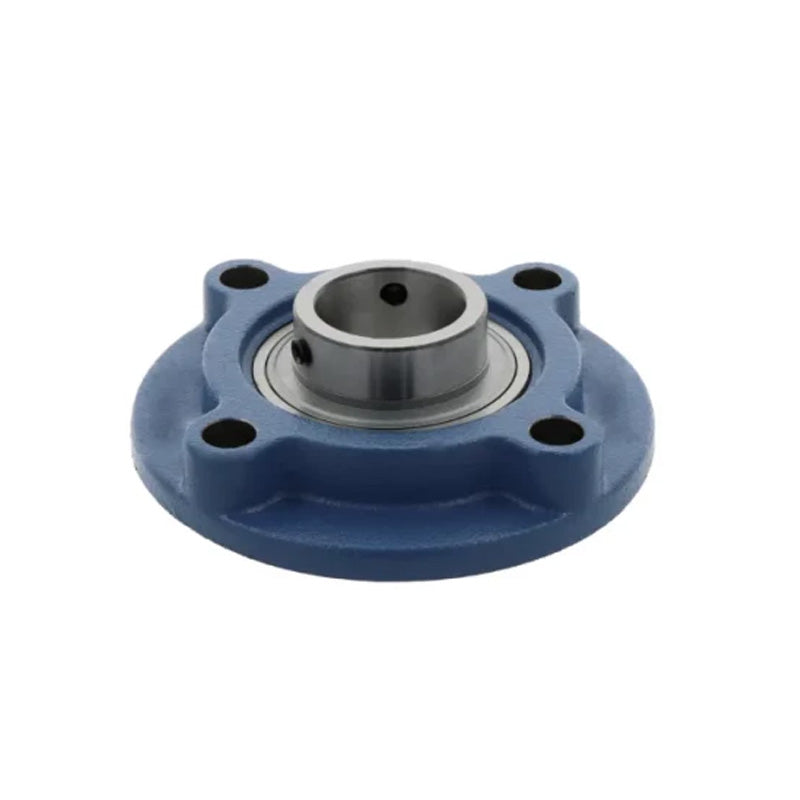

UCFCX15 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert
UCFCX15 Metric Four Bolt Cast Iron Round Flanged Housing with 75mm Insert
Regular price
CHF 118.52
ex VAT
Regular price
Sale price
CHF 118.52
ex VAT
In stock
Price Break
10+
CHF 105.48
19+
CHF 99.56
29+
CHF 98.37
39+
CHF 97.19
49+
CHF 96.00
74+
CHF 94.82
99+
CHF 88.89
199+
CHF 87.70
249+
CHF 86.52
499+
CHF 85.33
999+
CHF 82.96
Couldn't load pickup availability
Share this product
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 134.3mm
Technical
Technical
| d | 75mm |
|---|---|
| a | 222mm |
| p | 190mm |
| (e) | 134.3mm |
| i | 12mm |
| s | 19mm |
| j | 22mm |
| k | 16mm |
| g | 35mm |
| f | 164mm |
| z | 61.3mm |
| B | 82.6mm |
| n | 33.3mm |
| Bolt size | M16 |
| Bearing no | UCX15 |
| Housing no | FCX15 |
| Weight | 7.2 kg |
