SKU: UCFCX17

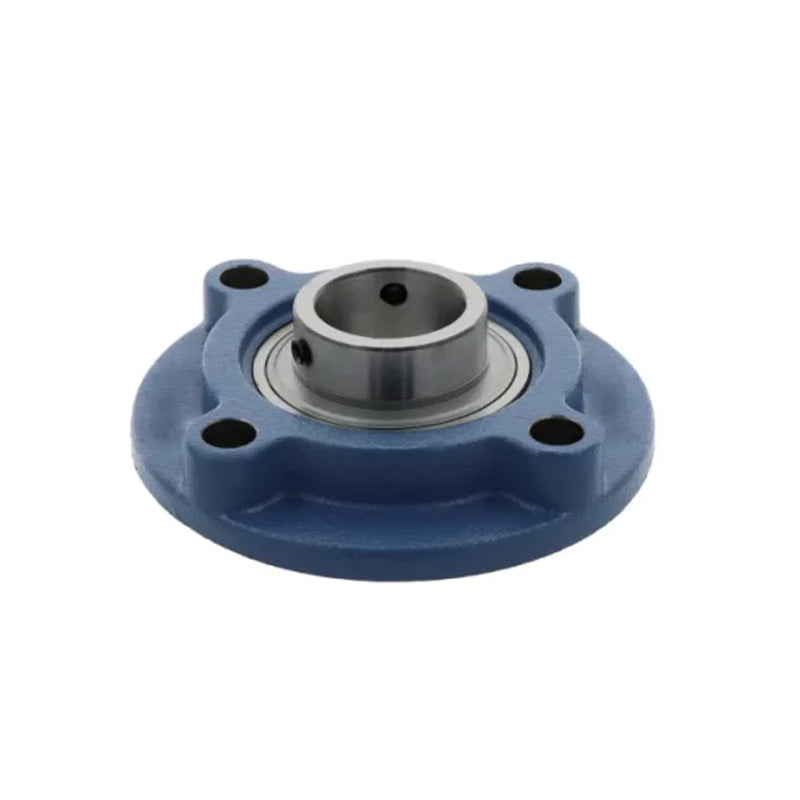

UCFCX17 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert
UCFCX17 Metric Four Bolt Cast Iron Round Flanged Housing with 85mm Insert
Regular price
CHF 172.46
ex VAT
Regular price
Sale price
CHF 172.46
ex VAT
In stock
Price Break
10+
CHF 153.49
19+
CHF 144.87
29+
CHF 143.14
39+
CHF 141.42
49+
CHF 139.69
74+
CHF 137.97
99+
CHF 129.35
199+
CHF 127.62
249+
CHF 125.90
499+
CHF 124.17
999+
CHF 120.72
Couldn't load pickup availability
Description
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCFCX
- Pitch Circle Diameter:
- 154.8mm
Technical
Technical
| d | 85mm |
|---|---|
| a | 260mm |
| p | 219mm |
| (e) | 154.8mm |
| i | 10mm |
| s | 23mm |
| j | 25mm |
| k | 19mm |
| g | 36mm |
| f | 186mm |
| z | 66.3mm |
| B | 96mm |
| n | 39.7mm |
| Bolt size | M20 |
| Bearing no | UCX17 |
| Housing no | FCX17 |
| Weight | 11.4 kg |
