SKU: UCFE212-SNR

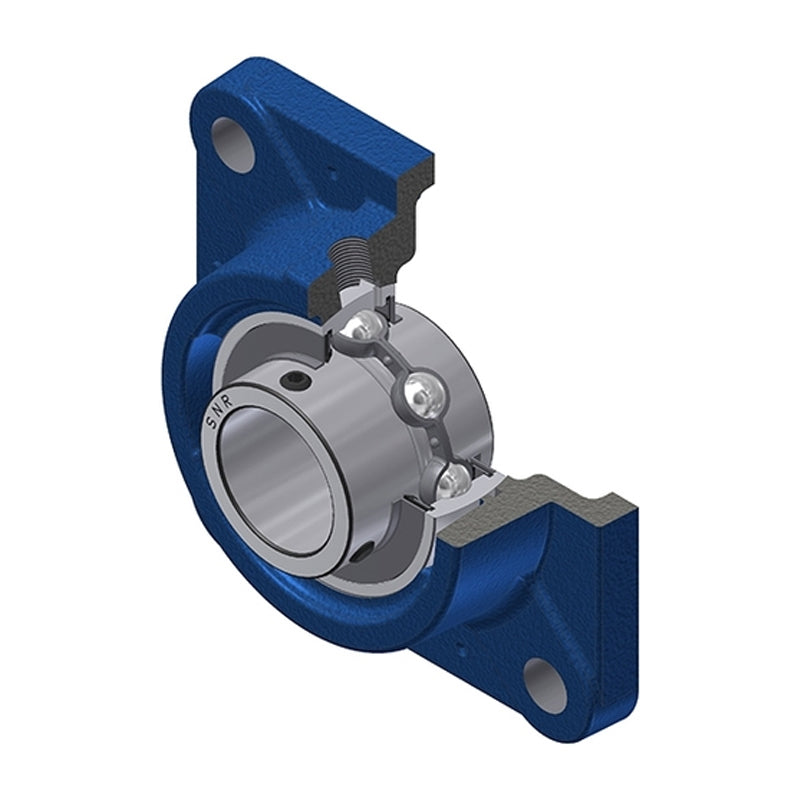

SNR UCFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
SNR UCFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
Regular price
CHF 69.38
ex VAT
Regular price
Sale price
CHF 69.38
ex VAT
In stock
Price Break
10+
CHF 61.75
19+
CHF 58.28
29+
CHF 57.59
39+
CHF 56.89
49+
CHF 56.20
74+
CHF 55.50
99+
CHF 52.04
199+
CHF 51.34
249+
CHF 50.65
499+
CHF 49.95
999+
CHF 48.57
Couldn't load pickup availability
Description
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCFE
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 53.5mm |
| A1 | 16mm |
| A2 | 73.7mm |
| B | 65.1mm |
| e | 34mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.86 kg |
