SKU: UCFL.211.TS.CHAL

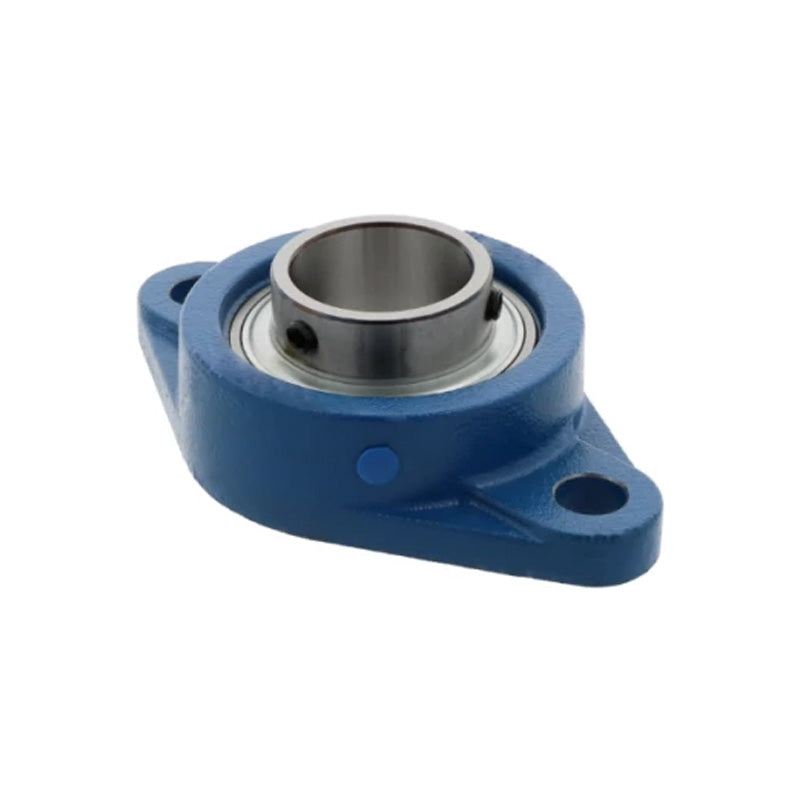

Challenge / FK UCFL211 Metric Cast Iron Two Bolt Oval Flange Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL211 Metric Cast Iron Two Bolt Oval Flange Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 96.00
ex VAT
Regular price
Sale price
CHF 96.00
ex VAT
Equivalent to: UCFL.211
In stock
Price Break
3+
CHF 76.43
5+
CHF 72.14
9+
CHF 71.28
19+
CHF 70.42
49+
CHF 69.56
74+
CHF 68.71
99+
CHF 64.41
199+
CHF 63.55
249+
CHF 62.69
499+
CHF 61.83
999+
CHF 60.12
Share this product
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.211
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 55mm
- Style:
- UCFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| Shaft Diameter d | 55mm |
|---|---|
| Casting Length a | 224mm |
| Recommended Bolt Centres L | 184mm |
| Back of Casting to Centre Line of Bearing i | 25mm |
| Depth of Casting at Bolt g | 18mm |
| Overall Casting Height l | 43mm |
| Bolt Hole Diameter s | 19mm |
| Casting Width b | 130mm |
| Back of Casting to Bearing Front z | 58.4mm |
| Bearing Insert Width Bi | 55.6mm |
| Back of Bearing to Centre Line n | 22.2mm |
| Bolt Size | M16 |
| Grub Screws x 2 | M10X1.25mm |
| Load Rating (Dynamic) | 3400kg |
| Load Rating (Static) | 2550kg |
| Max Speed | 1600 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC211 |
| Housing No | FL211 |
