SKU: UCFL.212-39
UCFL212-39 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-7/16 inch Bore Insert
UCFL212-39 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-7/16 inch Bore Insert
Regular price
CHF 85.00
ex VAT
Regular price
Sale price
CHF 85.00
ex VAT
In stock
Price Break
3+
CHF 67.27
4+
CHF 63.49
9+
CHF 62.73
19+
CHF 61.98
49+
CHF 61.22
99+
CHF 60.47
499+
CHF 56.69
999+
CHF 55.93
1999+
CHF 55.17
2999+
CHF 54.42
4999+
CHF 52.91
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 202mm

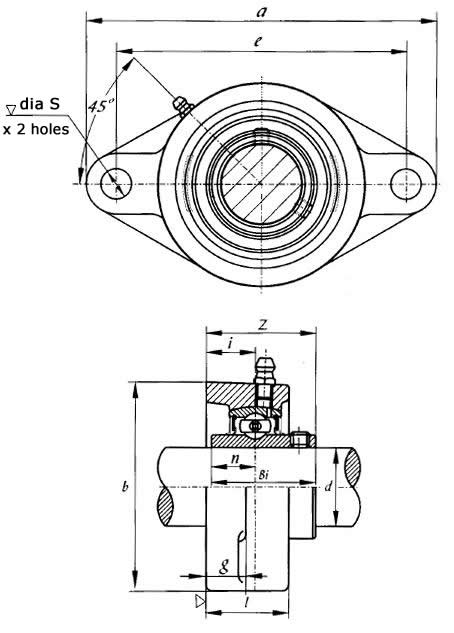

Technical
Technical
| d | 2-7/16 inch |
|---|---|
| a | 250mm |
| e | 202mm |
| i | 29mm |
| g | 18mm |
| L | 48mm |
| S | 23mm |
| b | 140mm |
| z | 68.7mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M20 |
| Weight | 4.1 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
