SKU: UCFL.213.TS.CHAL

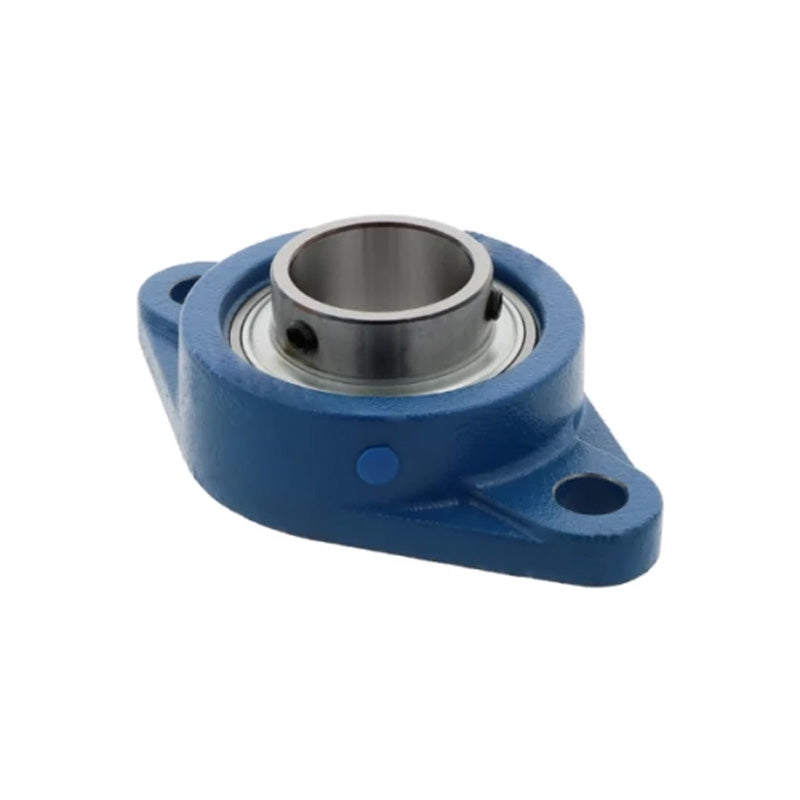

Challenge / FK UCFL213 Metric Cast Iron Two Bolt Oval Flange Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge / FK UCFL213 Metric Cast Iron Two Bolt Oval Flange Housing with 65mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
CHF 272.00
ex VAT
Regular price
Sale price
CHF 272.00
ex VAT
Equivalent to: UCFL.213
In stock
Price Break
3+
CHF 216.23
5+
CHF 204.08
9+
CHF 201.65
19+
CHF 199.22
49+
CHF 196.79
74+
CHF 194.36
99+
CHF 182.21
199+
CHF 179.78
249+
CHF 177.35
499+
CHF 174.92
999+
CHF 170.07
Share this product
Description
Description
UCFL Cast Iron Two Bolt Oval Flange Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Equivalent: UCFL.213
- Brand / Quality:
- Challenge / FK - Good Quality
- Inside Diameter:
- 65mm
- Style:
- UCFL
- Bolt Hole Centres:
- 210mm
Technical
Technical
| Shaft Diameter d | 65mm |
|---|---|
| Casting Length a | 258mm |
| Recommended Bolt Centres L | 210mm |
| Back of Casting to Centre Line of Bearing i | 30mm |
| Depth of Casting at Bolt g | 22mm |
| Overall Casting Height l | 50mm |
| Bolt Hole Diameter s | 23mm |
| Casting Width b | 155mm |
| Back of Casting to Bearing Front z | 69.7mm |
| Bearing Insert Width Bi | 65.1mm |
| Back of Bearing to Centre Line n | 25.4mm |
| Bolt Size | M20 |
| Grub Screws x 2 | M10x1.25mm |
| Load Rating (Dynamic) | 4480kg |
| Load Rating (Static) | 3470kg |
| Max Speed | 1400 rev/min |
| Grease Nipple Thread Size | M8 |
| Working Temperature | -30°C to +120°C |
| Insert No | UC213 |
| Housing No | FL213 |
