SKU: UCFL.214-44

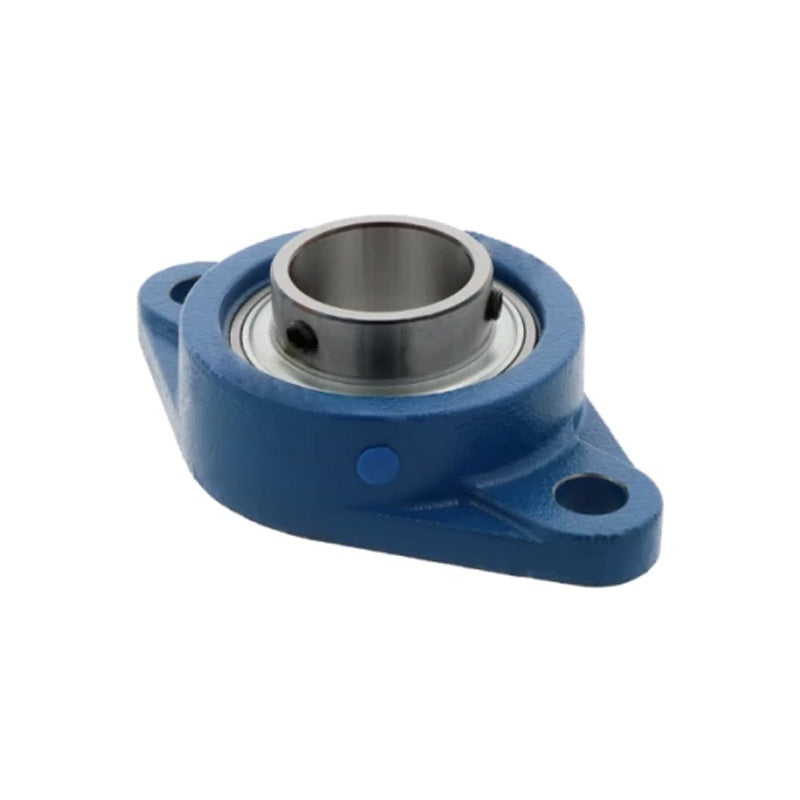

UCFL214-44 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/4 inch Bore Insert
UCFL214-44 Imperial Two Bolt Oval Cast Iron Flange Housing with 2-3/4 inch Bore Insert
Regular price
CHF 154.00
ex VAT
Regular price
Sale price
CHF 154.00
ex VAT
In stock
Price Break
3+
CHF 121.94
4+
CHF 115.09
9+
CHF 113.72
19+
CHF 112.35
49+
CHF 110.98
99+
CHF 109.61
499+
CHF 102.76
999+
CHF 101.39
1999+
CHF 100.02
2999+
CHF 98.65
4999+
CHF 95.91
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 216mm
Technical
Technical
| d | 2-3/4 inch |
|---|---|
| a | 265mm |
| e | 216mm |
| i | 31mm |
| g | 20mm |
| L | 54mm |
| S | 23mm |
| b | 160mm |
| z | 75.4mm |
| B1 | 74.6mm |
| n | 30.2mm |
| Bolt Size | M20 |
| Weight | 5.9 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
