SKU: UCFL205-16CC-SNR

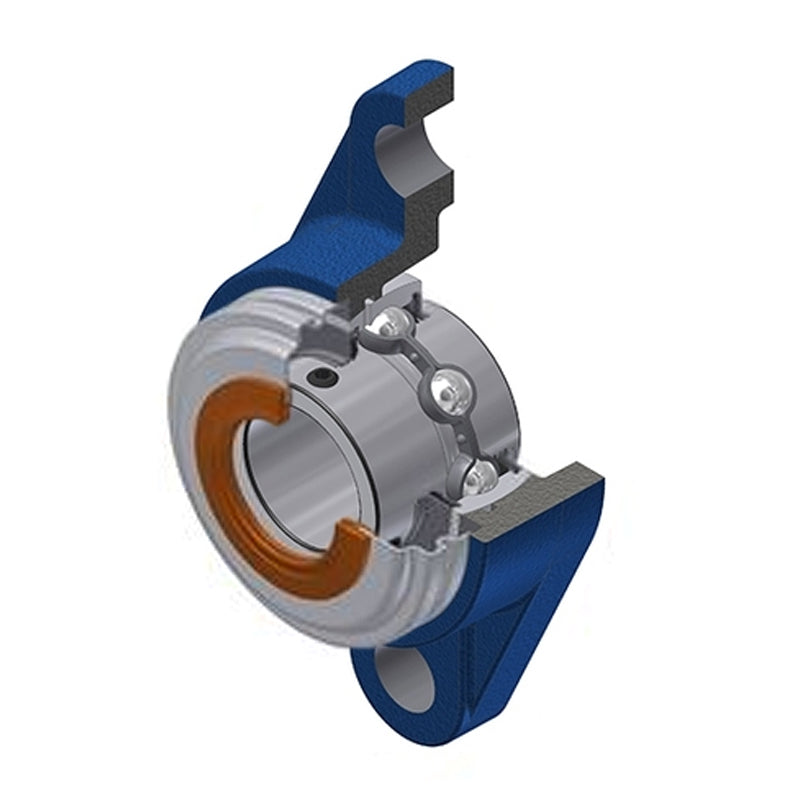

SNR UCFL205-16CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCFL205-16CC Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.83
4+
CHF 52.61
9+
CHF 51.50
19+
CHF 49.84
49+
CHF 48.73
99+
CHF 45.97
499+
CHF 38.77
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1 inch |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.7mm |
| B | 34mm |
| e | 16mm |
| H | 130mm |
| J | 90mm |
| L | 68mm |
| N | 16mm |
| S | 14.3mm |
| Dz | 60mm |
| Z | 39.6mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.637 kg |
