SKU: UCFL205-16T20-SNR

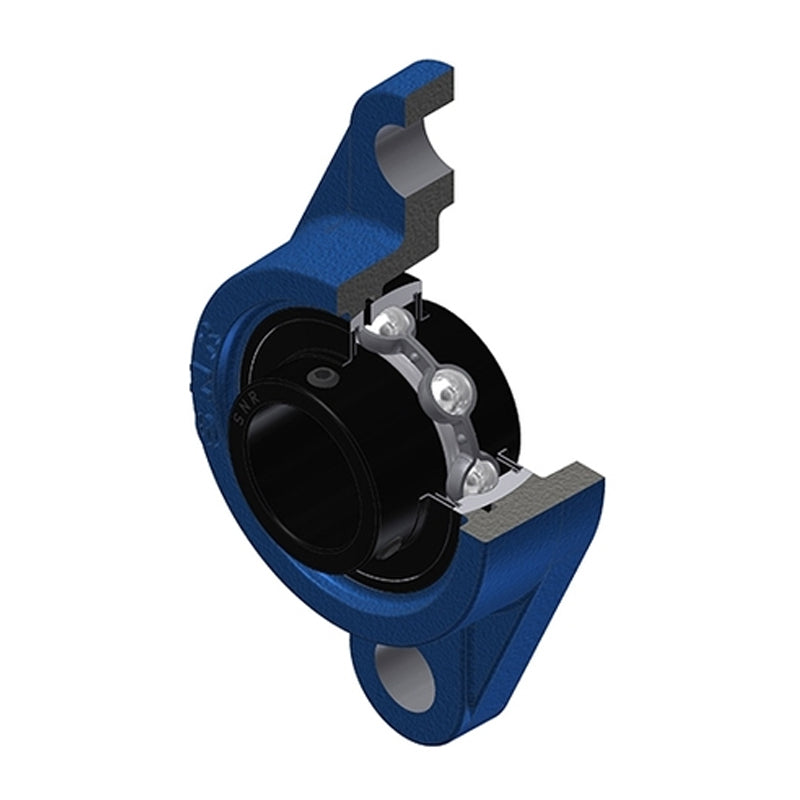

SNR UCFL205-16T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCFL205-16T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
3+
CHF 42.89
4+
CHF 40.48
9+
CHF 40.00
19+
CHF 39.52
49+
CHF 39.04
99+
CHF 38.56
499+
CHF 36.15
999+
CHF 35.66
1999+
CHF 35.18
2999+
CHF 34.70
4999+
CHF 33.74
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCFL
- Bolt Hole Centres:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1 inch |
| A | 27mm |
| A1 | 13mm |
| A2 | 35.7mm |
| B | 34mm |
| e | 16mm |
| H | 130mm |
| J | 90mm |
| L | 68mm |
| N | 16mm |
| S | 14.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 14 kN |
| Static load C0 | 7.88 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.61 kg |
