SKU: UCFL210T20-SNR

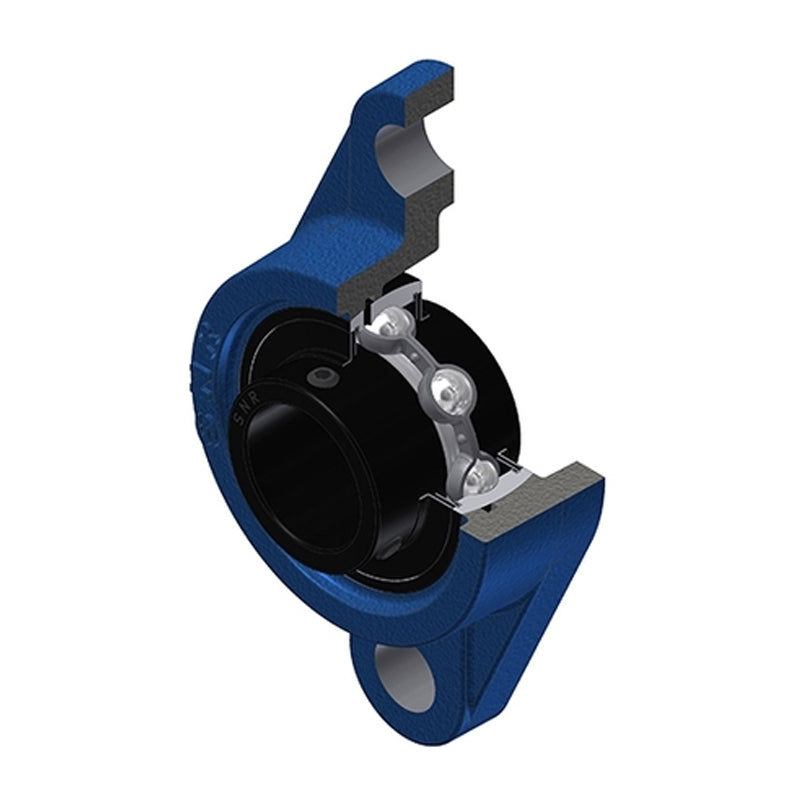

SNR UCFL210T20 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version
SNR UCFL210T20 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version
Regular price
CHF 101.00
ex VAT
Regular price
Sale price
CHF 101.00
ex VAT
In stock
Price Break
3+
CHF 80.07
4+
CHF 75.57
9+
CHF 74.67
19+
CHF 73.77
49+
CHF 72.87
99+
CHF 71.97
499+
CHF 67.47
999+
CHF 66.57
1999+
CHF 65.67
2999+
CHF 64.77
4999+
CHF 62.97
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 50mm |
| A | 40mm |
| A1 | 16mm |
| A2 | 54.6mm |
| B | 51.6mm |
| e | 22mm |
| H | 197mm |
| J | 157mm |
| L | 115mm |
| N | 19mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.19 kg |
