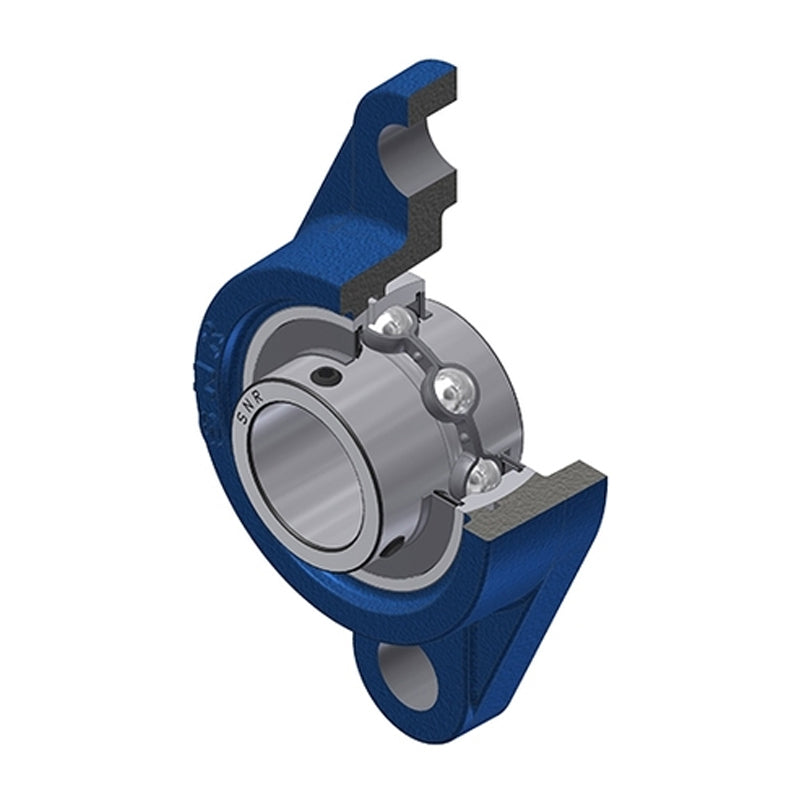

SNR UCFL217-52 Imperial Two Bolt Oval Cast Iron Flange Housing with 4-1/4 inch Bore Insert - Allow 2-3 Days
SNR UCFL217-52 Imperial Two Bolt Oval Cast Iron Flange Housing with 4-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 248.00
ex VAT
Regular price
Sale price
CHF 248.00
ex VAT
In stock
Price Break
3+
CHF 219.41
4+
CHF 210.55
9+
CHF 206.12
19+
CHF 199.47
49+
CHF 195.03
99+
CHF 183.95
499+
CHF 155.14
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 248mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 4-1/4 inch |
| A | 63mm |
| A1 | 22mm |
| A2 | 87.6mm |
| B | 85.7mm |
| e | 36mm |
| H | 305mm |
| J | 248mm |
| L | 190mm |
| N | 25mm |
| S | 34.1mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 27.1 Nm |
| Mass | 8.4 kg |
