SKU: UCFL310

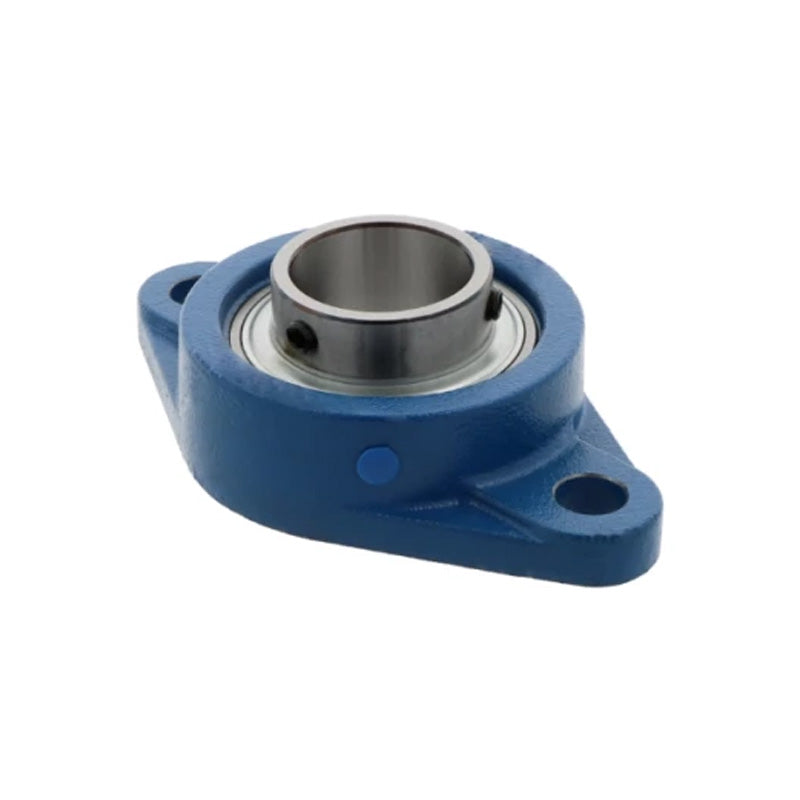

UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
UCFL310 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 50mm Bore
Regular price
CHF 67.00
ex VAT
Regular price
Sale price
CHF 67.00
ex VAT
In stock
Price Break
3+
CHF 53.05
4+
CHF 50.07
9+
CHF 49.47
19+
CHF 48.87
49+
CHF 48.28
99+
CHF 47.68
499+
CHF 44.70
999+
CHF 44.10
1999+
CHF 43.51
2999+
CHF 42.91
4999+
CHF 41.72
Share this product
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCFL
- Bolt Hole Centres:
- 187mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 240mm |
| e | 187mm |
| i | 28mm |
| g | 19mm |
| l | 48mm |
| s | 25mm |
| b | 140mm |
| z | 67mm |
| B | 61mm |
| n | 22mm |
| Bolt size | M22 |
| Bearing no | UC310 |
| Housing no | FL310 |
| Weight | 3.993 kg |
