SKU: UCFL312

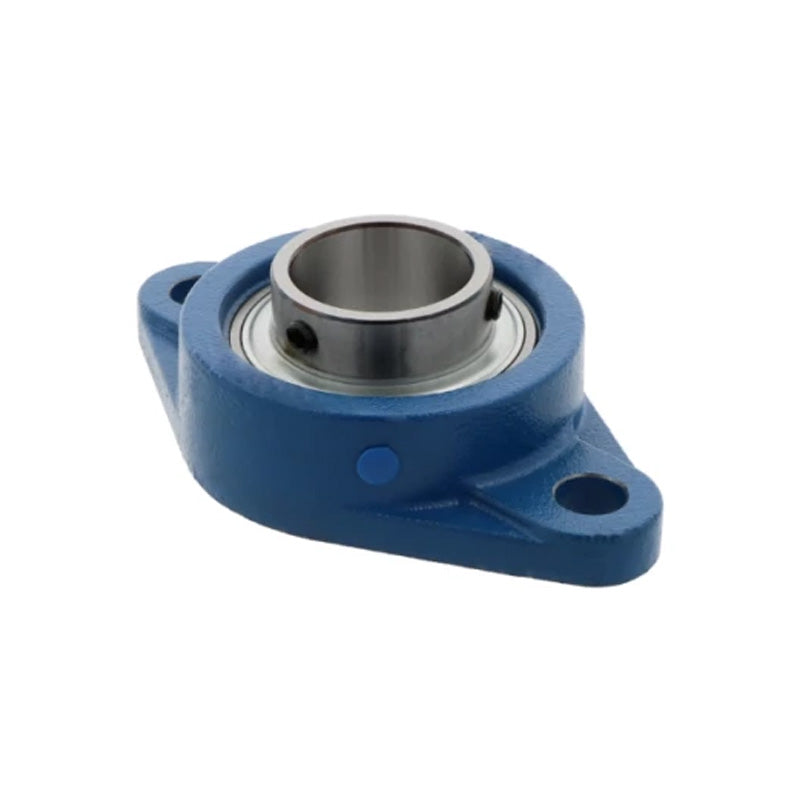

UCFL312 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 60mm Bore
UCFL312 Heavy Duty Metric Two Bolt Cast Iron Oval Housing with 60mm Bore
Regular price
CHF 108.11
ex VAT
Regular price
Sale price
CHF 108.11
ex VAT
In stock
Price Break
10+
CHF 96.22
19+
CHF 90.81
29+
CHF 89.73
39+
CHF 88.65
49+
CHF 87.57
74+
CHF 86.49
99+
CHF 81.08
199+
CHF 80.00
249+
CHF 78.92
499+
CHF 77.84
999+
CHF 75.68
Couldn't load pickup availability
Description
Description
UCFL300 Series Heavy Duty 2 Bolt Oval Housings: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCFL
- Bolt Hole Centres:
- 212mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 270mm |
| e | 212mm |
| i | 33mm |
| g | 22mm |
| l | 56mm |
| s | 31mm |
| b | 160mm |
| z | 78mm |
| B | 71mm |
| n | 26mm |
| Bolt size | M27 |
| Bearing no | UC312 |
| Housing no | FL312 |
| Weight | 5.771 kg |
