SKU: UCFLE210-30N-SNR

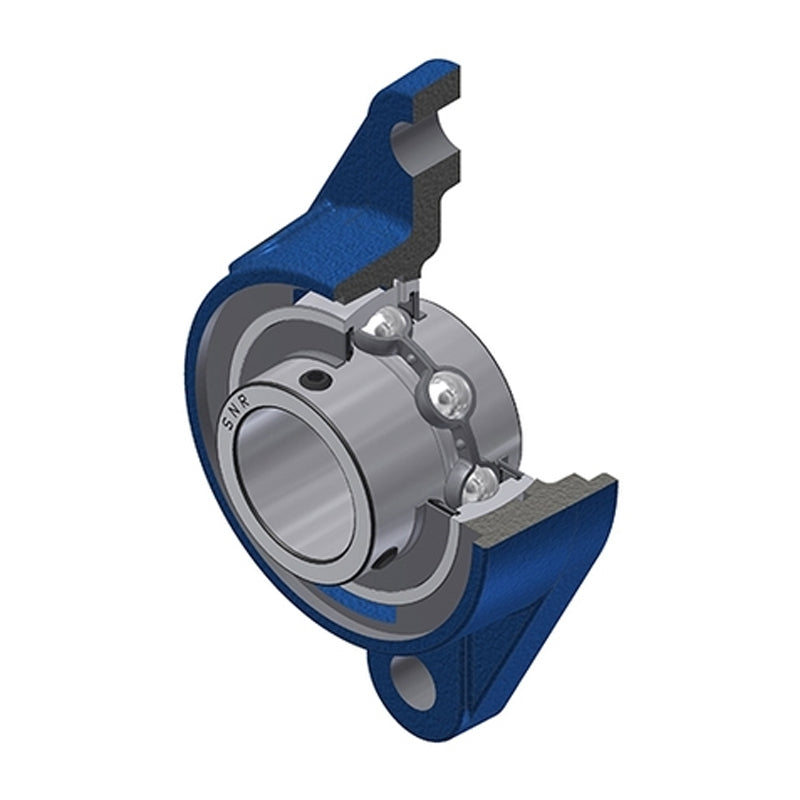

SNR UCFLE210-30N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/8 inch Bore Insert - Allow 2-3 Days
SNR UCFLE210-30N Imperial Two Bolt Oval Cast Iron Flange Housing with 1-7/8 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.75
4+
CHF 63.09
9+
CHF 61.76
19+
CHF 59.77
49+
CHF 58.44
99+
CHF 55.12
499+
CHF 46.49
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 157mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-7/8 inch |
| A | 41.6mm |
| A1 | 13mm |
| A2 | 60.6mm |
| B | 51.6mm |
| e | 28mm |
| H | 190mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 2.17 kg |
