SKU: UCFLE211-32N-SNR

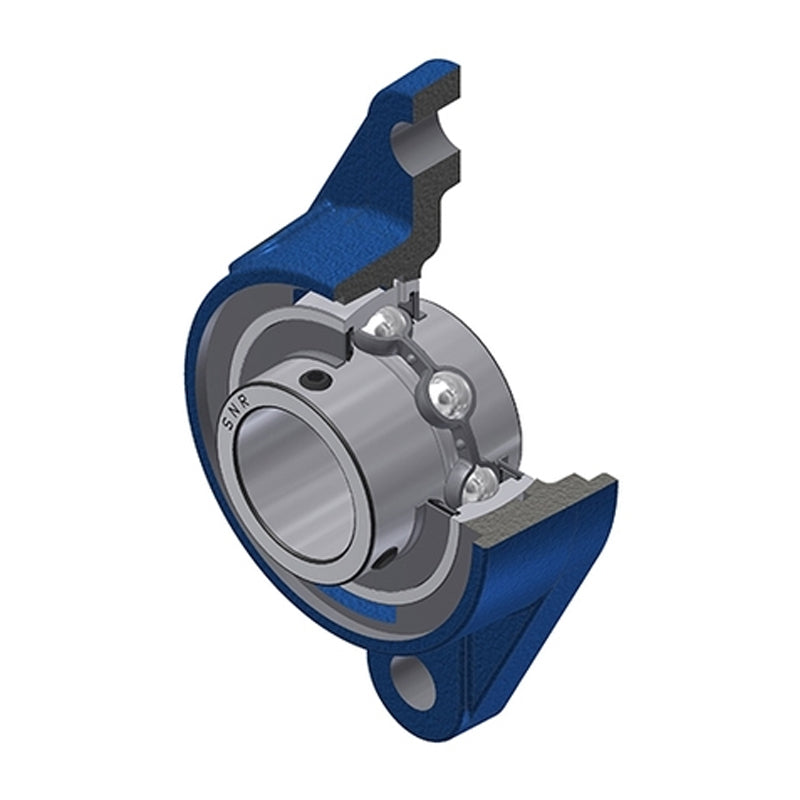

SNR UCFLE211-32N Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
SNR UCFLE211-32N Imperial Two Bolt Oval Cast Iron Flange Housing with 2 inch Bore Insert - Allow 2-3 Days
Regular price
CHF 99.00
ex VAT
Regular price
Sale price
CHF 99.00
ex VAT
In stock
Price Break
3+
CHF 87.77
4+
CHF 84.23
9+
CHF 82.45
19+
CHF 79.79
49+
CHF 78.02
99+
CHF 73.59
499+
CHF 62.06
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50.8mm = 2 Inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2 inch |
| A | 45.8mm |
| A1 | 15mm |
| A2 | 64.4mm |
| B | 55.6mm |
| e | 31mm |
| H | 222mm |
| J | 184mm |
| L | 134mm |
| N | 18mm |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.37 kg |
