SKU: UCFLE212-36CC-SNR

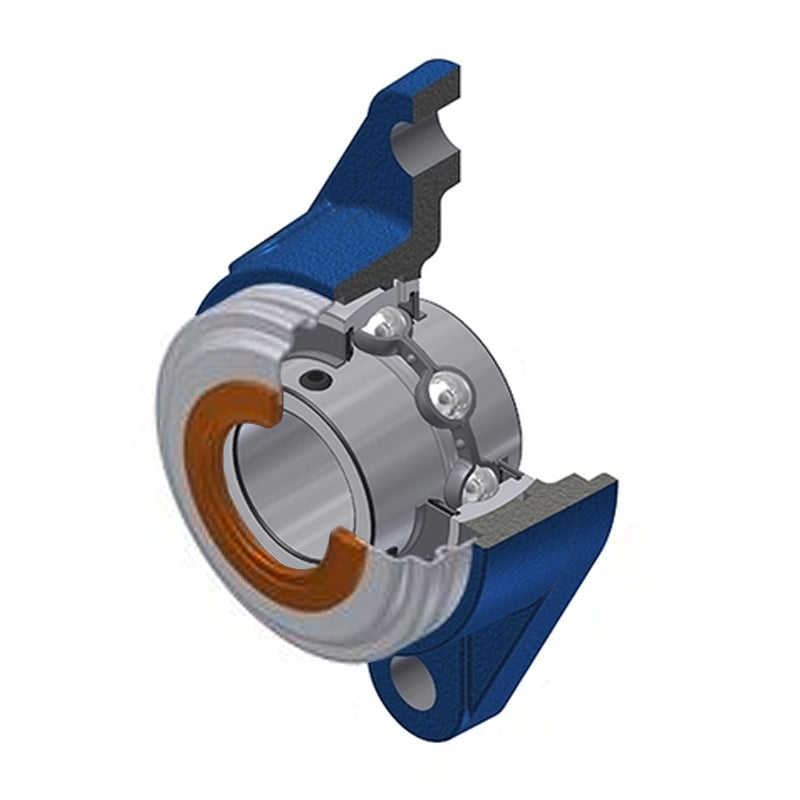

SNR UCFLE212-36CC Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/4 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
SNR UCFLE212-36CC Imperial Two Bolt Oval Cast Iron Flange Housing with 2-1/4 inch Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price
CHF 124.00
ex VAT
Regular price
Sale price
CHF 124.00
ex VAT
In stock
Price Break
3+
CHF 109.70
4+
CHF 105.27
9+
CHF 103.05
19+
CHF 99.73
49+
CHF 97.51
99+
CHF 91.97
499+
CHF 77.57
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCFLE
- Bolt Hole Centres:
- 202mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/4 inch |
| A | 50.4mm |
| A1 | 16mm |
| A2 | 73.7mm |
| B | 65.1mm |
| e | 34mm |
| H | 238mm |
| J | 202mm |
| L | 138mm |
| N | 18mm |
| S | 25.4mm |
| Dz | 120mm |
| Z | 77.6mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.87 kg |
