SKU: UCFLX.07

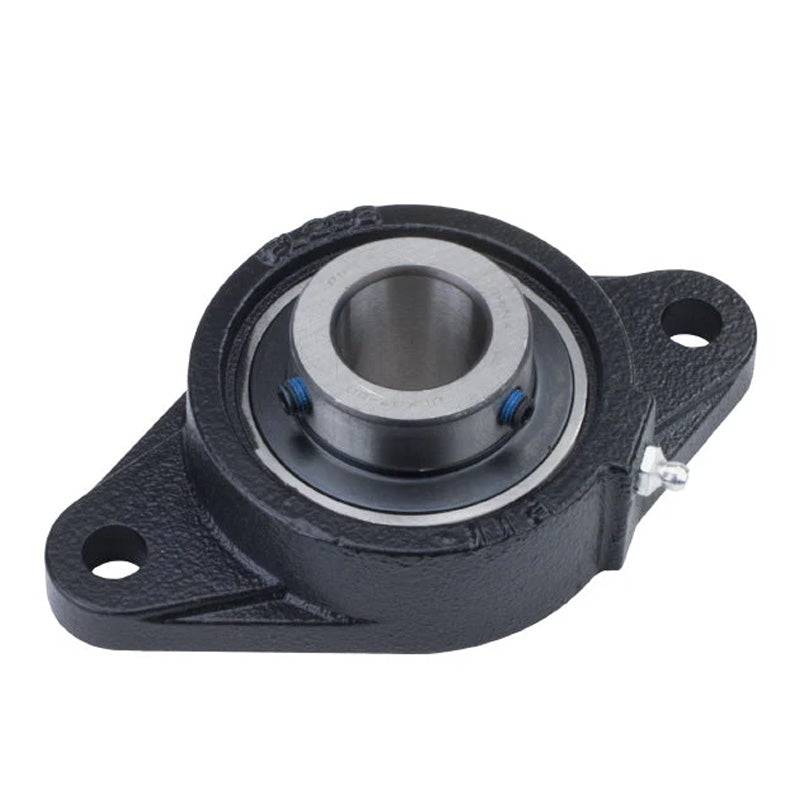

UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
UCFLX07 Metric Two Bolt Oval Cast Iron Housing with 35mm Bore Insert
Regular price
CHF 28.00
ex VAT
Regular price
Sale price
CHF 28.00
ex VAT
Equivalent to: MSFT35
In stock
Price Break
3+
CHF 21.56
4+
CHF 20.35
9+
CHF 20.11
19+
CHF 19.86
49+
CHF 19.62
99+
CHF 19.38
499+
CHF 18.17
999+
CHF 17.93
1999+
CHF 17.68
2999+
CHF 17.44
4999+
CHF 16.96
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 144mm
Technical
Technical
| d | 35mm |
|---|---|
| a | 171mm |
| e | 144mm |
| i | 144mm |
| g | 16mm |
| l | 38mm |
| s | 16mm |
| b | 105mm |
| z | 51.2mm |
| Bi | 49.2mm |
| n | 17.5mm |
| Bolt | M14 |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
