SKU: UCFLX.07-22

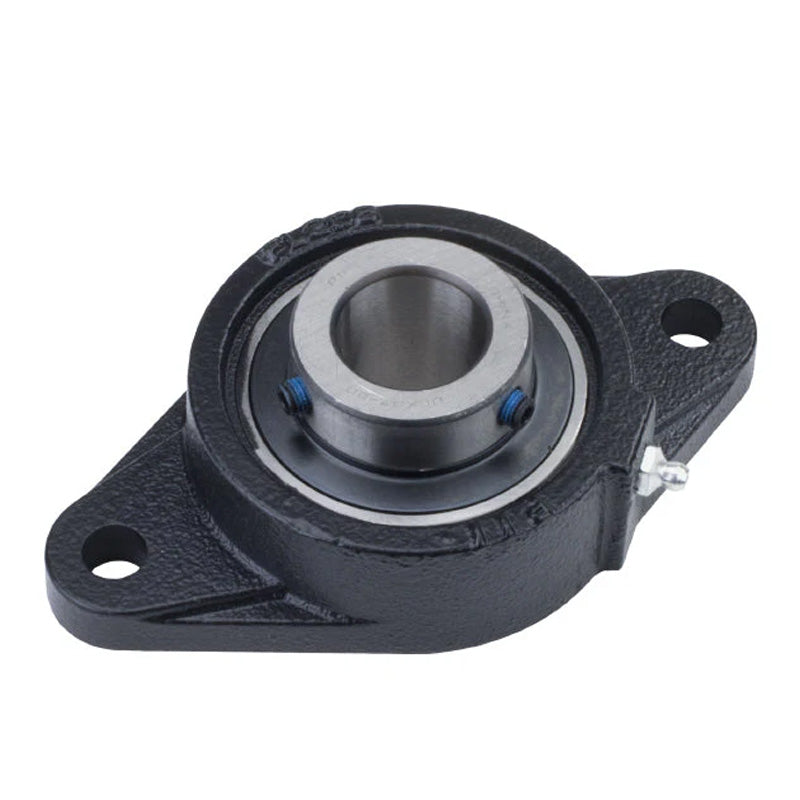

UCFLX07-22 Imperial Two Bolt Oval Cast Iron Housing with 1-3/8 inch Bore Insert
UCFLX07-22 Imperial Two Bolt Oval Cast Iron Housing with 1-3/8 inch Bore Insert
Regular price
CHF 14.00
ex VAT
Regular price
Sale price
CHF 14.00
ex VAT
Equivalent to: MSFT1-3/8
In stock
Price Break
3+
CHF 11.09
4+
CHF 10.47
9+
CHF 10.34
19+
CHF 10.22
49+
CHF 10.09
99+
CHF 9.97
499+
CHF 9.35
999+
CHF 9.22
1999+
CHF 9.10
2999+
CHF 8.97
4999+
CHF 8.72
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT1-3/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- UCFLX
- Bolt Hole Centres:
- 144.06mm = 5.671 (5-43/64) inch
Technical
Technical
| d | 1-3/8 inch |
|---|---|
| a | 171mm = 6-23/32 inch |
| e | 144mm = 5-43/64 inch |
| i | 144mm = 5-43/64 inch |
| g | 16mm = 5/8 inch |
| l | 38mm = 1-1/2 inch |
| s | 16mm = 5/8 inch |
| b | 105mm = 4-1/8 inch |
| z | 51.2mm = 2-1/64 inch |
| Bi | 49.2mm = 1.937 inch |
| n | 17.5mm = 0.689 inch |
| Bolt | 14mm = 1/2 inch |
| Weight | 1.9 kg |
| Dynamic load | 25560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 4000 rpm |
