SKU: UCFLX.08

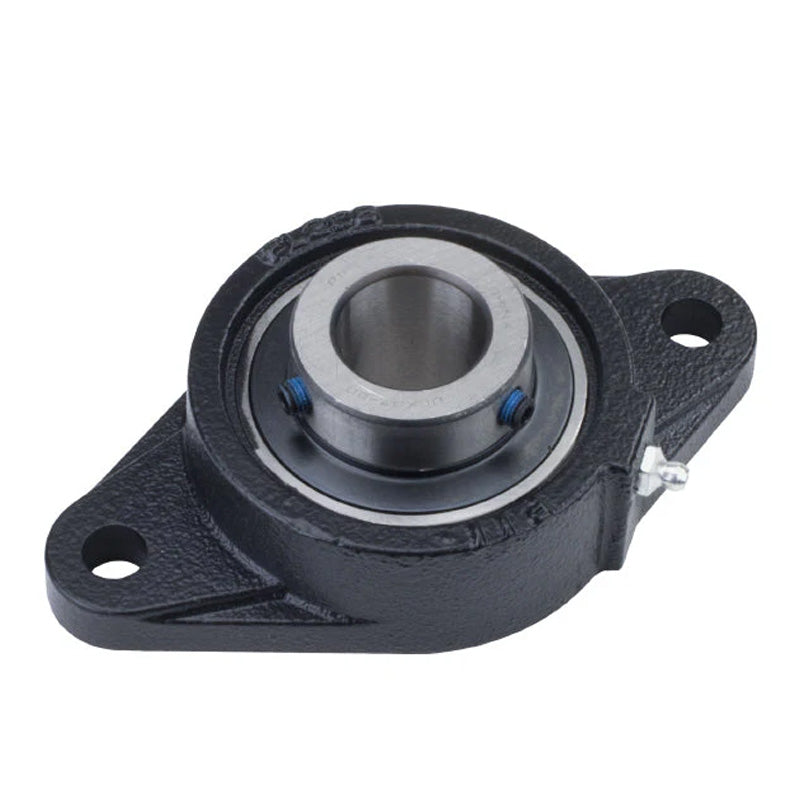

UCFLX08 Metric Two Bolt Oval Cast Iron Housing with 40mm Bore Insert
UCFLX08 Metric Two Bolt Oval Cast Iron Housing with 40mm Bore Insert
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: MSFT40
In stock
Price Break
3+
CHF 7.33
4+
CHF 6.92
9+
CHF 6.84
19+
CHF 6.76
49+
CHF 6.67
99+
CHF 6.59
499+
CHF 6.18
999+
CHF 6.10
1999+
CHF 6.02
2999+
CHF 5.93
4999+
CHF 5.77
Description
Description
|
UCFLX or MSFT Series Medium Duty 2 Bolt Oval Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: MSFT40
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCFLX
- Bolt Hole Centres:
- 148mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 179mm |
| e | 148mm |
| i | 148mm |
| g | 16mm |
| l | 40mm |
| s | 16mm |
| b | 111mm |
| z | 52.2mm |
| Bi | 49.2mm |
| n | 19mm |
| Bolt | M14 |
| Weight | 2 kg |
| Dynamic load | 2650 kgf |
| Static load | 1910 kgf |
| Rec max speed | 3700 rpm |
